LIFTGATE HINGE REMOVAL/INSTALLATION

id091100521300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(7)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(8)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(9)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Assist handle (Rear side) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(11)  Cargo net upper hook (See HEADLINER REMOVAL/INSTALLATION.)

(12)  Headliner cover (See HEADLINER REMOVAL/INSTALLATION.)

(13)  Liftgate (See LIFTGATE REMOVAL/INSTALLATION.)

3.  Remove fasteners.

ac5wzw00003086

4.  While partially peeling back the rear part of the headliner, remove nuts.

Caution

•  Peeling back the headliner without supporting it may cause the headliner to bend excessively and create a fold seam. Peel back the headliner while supporting it.

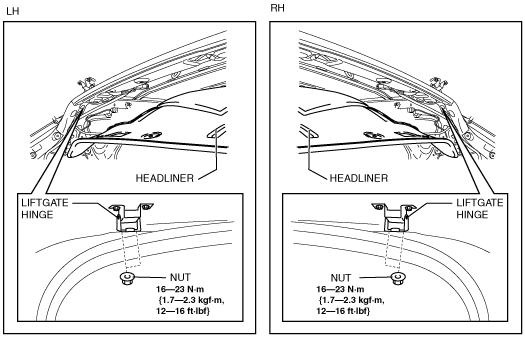

am6zzw00011230

5.  Remove the liftgate hinges.

6.  Install in the reverse order of removal.
