OUTER MIRROR GARNISH REMOVAL/INSTALLATION

id091200003000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

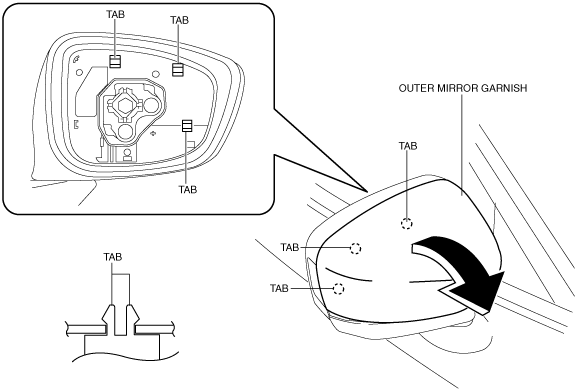

3.  Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tabs in the direction of arrow.

am6xuw00007864

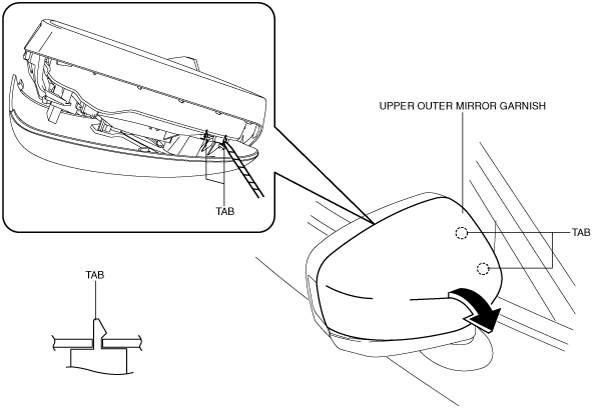

4.  Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tab in the direction of arrow.

am6xuw00007865

5.  Install in the reverse order of removal.
