GLASS/WINDOWS/MIRRORS

id091200012000

Outline

• A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window sub switches.

• A power outer mirror system has been adopted with which the outer mirrors can be operated remotely using the power outer mirror switch.

• A rear window defogger has been adopted with which rear window glass fogging can be cleared by pressing the rear window defogger switch.

• Outer mirror heaters have been adopted which are can remove fogging on the surface of the outer mirrors in conjunction with the rear window defogger. (With heated outer mirrors)

• An auto-dimming mirror has been adopted which prevents the driver from being dazzled by light from vehicles at the rear for assured safety while driving at night. (With auto-dimming mirror)

Glass/window/mirror specification

	UV protection glass	Dark glass	Light dark glass
Windshield	—	—	—
Front door glass	×	—	—
Rear door glass	×^*1	×^*1	—
Rear door quarter glass	×^*1	×^*1	—
Quarter window glass (WGN)	×^*1	×^*1	—
Rear window glass	×^*1	×^*1	×^*1

*1 :Availability depends on vehicle specification.

Structural View

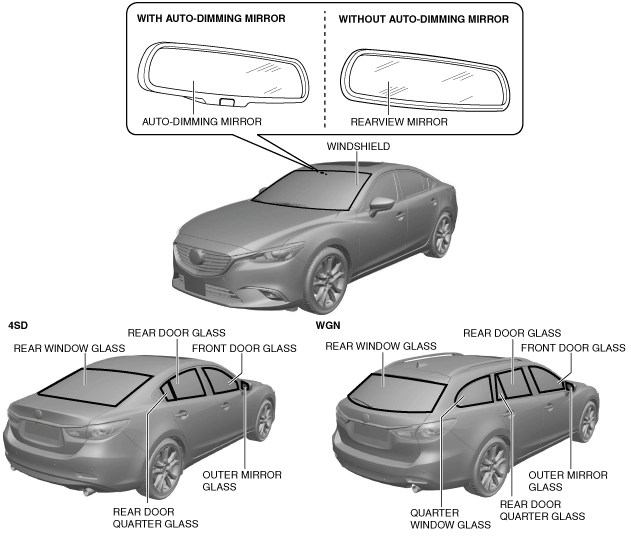

Glass/window/mirror

am6zzn00003364

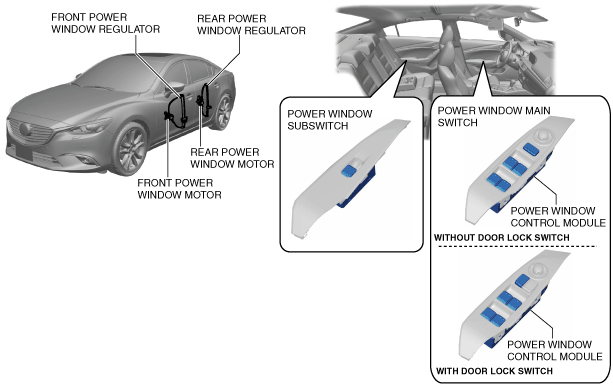

Power window system

am6zzn00003365

Power outer mirror system

am6zzn00003366

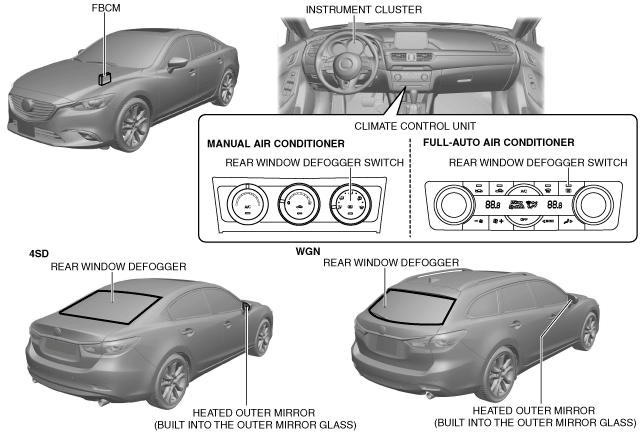

Rear window defogger/heated outer mirror

am6zzn00003369

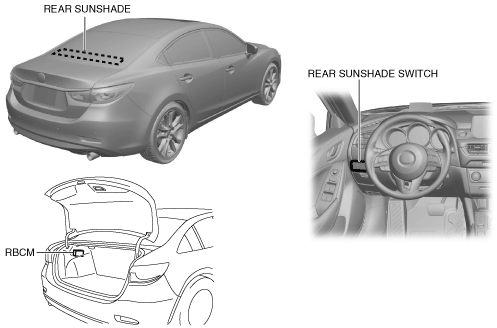

Rear sunshade

am6zzn00003368
