POWER WINDOW SYSTEM

id091200012200

Outline

Function

Manual open/manual close function

•  When the power window main switch or subswitch is operated for manual operation, the front door glass/rear door glass performs manual open/manual close operation.

Auto open/auto close function

•  When the power window main switch is operated for auto operation, all door glass perform auto open/auto close operation.

IG OFF timer function

•  The front door glass/rear door glass can be opened/closed using the power window main switch for approx. 40 s after the ignition is switched from ON (engine on or off) to ACC or OFF.

Auto reverse pinch protection function

•  If an obstruction by a foreign object is detected during the auto close operation, the operation changes from close to open.

Fully-closed position record function

•  The power window control module records the fully-closed position of the front door glass/rear glass so that the auto reverse pinch protection function does not operate when the front door glass/rear glass is fully closed.

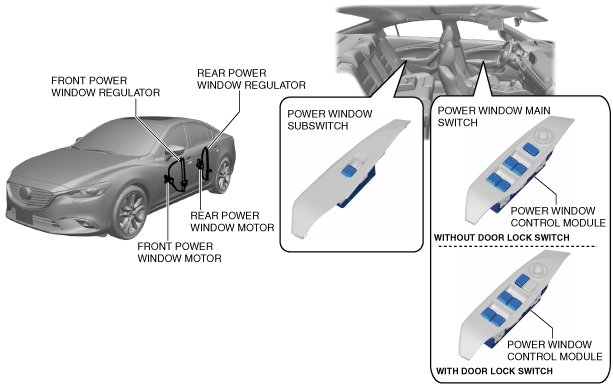

Structural View

am6zzn00003371

System Wiring Diagram

am6zzn00003372

Operation

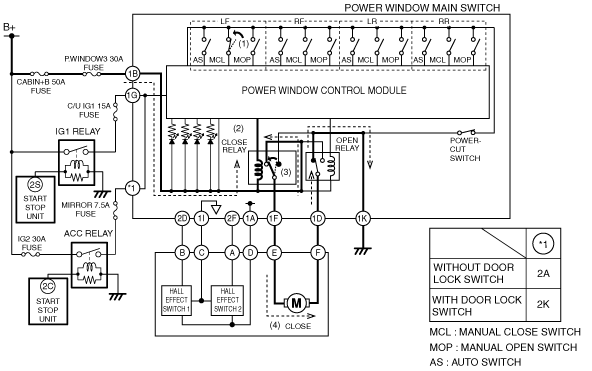

Operation of driver's side manual open/close function (Example: manual close operation)

1.  When the power window main switch is operated for manual close operation, the manual close switch is switched (1).

2.  When the power window control module detects a manual close signal, current flows to the close relay (2) and the close relay turns on (3).

3.  When the close relay turns on, the power window motor (driver's side) performs close operation (4).

am6zzn00003373

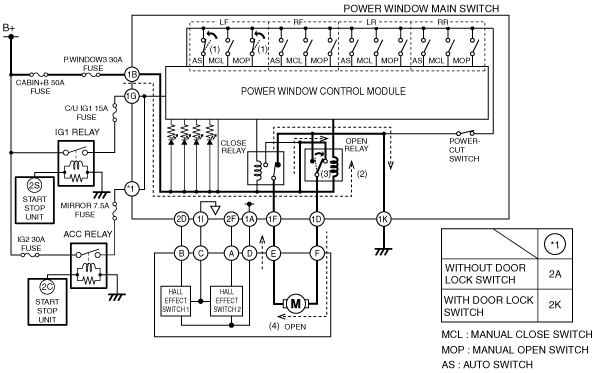

Operation of auto open/close function (Example: auto open operation)

1.  When the power window main switch is operated for auto open operation, the auto switch and the manual open switch are switched (1).

2.  When the power window control module detects an auto open signal, current flows to the open relay (2) and the open relay turns on (3).

3.  When the open relay turns on, the power window motor (driver's side) performs auto open operation (4).

am6zzn00003374

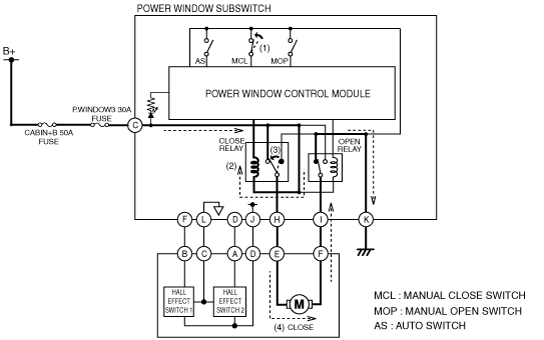

Operation of front passenger's side and rear open/close function (Example: manual close operation)

1.  When the power window subswitch is operated for manual close operation, the manual close switch is switched (1).

2.  When the power window control module detects a manual close signal, current flows to the close relay (2) and the close relay turns on (3).

3.  When the close relay turns on, the power window motor performs close operation (4).

am6zzn00003375

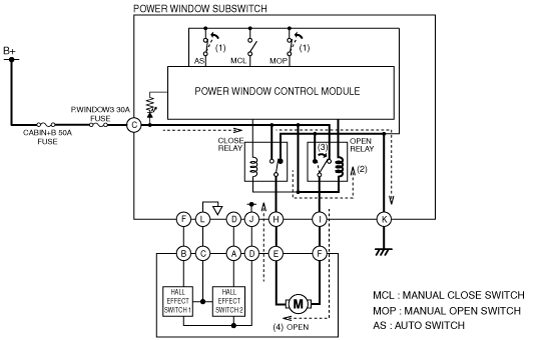

Operation of front passenger's side and rear auto open/close function (Example: auto open operation)

1.  When the power window subswitch is operated for auto open operation, the auto switch and the manual open switch are switched (1).

2.  When the power window control module detects an auto open signal, current flows to the open relay (2) and the open relay turns on (3).

3.  When the open relay turns on, the power window motor performs auto open operation (4).

am6zzn00003376

Operation of auto reverse pinch protection function

•  If the power window control module detects a change in the pulse signal from the power window motor for 0.3 s during auto close operation, it reverses the power window motor operation and opens the door glass approx. 200 mm {7.87 in}.

Fully-closed position record function

•  When the ignition is switched ON (engine off or on), and the switch is pulled and held for approx. 2 s after the door glass is fully closed from the fully opened position, the power window control module records the door glass position.

Note

•  Performing the following procedures will reset the initial setting and disables auto operation. Re-perform the initial setting.

―  Negative battery cable is disconnected

―  Power window main switch connector is disconnected

―  Power window system power supply fuse is removed

Fail-safe
