POWER OUTER MIRROR SYSTEM

id091200013500


Outline

•  The driver can operate the outer mirrors remotely by operating the power outer mirror switch.

Function


Outer mirror glass adjustment function

•  Outer mirror glass can be adjusted up/down and left/right electrically by operating the power outer mirror switch.


IG OFF timer function

•  Adjustment and retract/return of the outer mirror glass can be performed by operating the power outer mirror switch for approx. 40 s after switching the ignition from ON (engine off or on) to off.

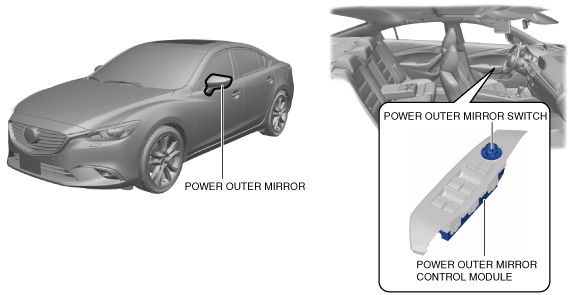

Structural View

am6zzn00003402

System Wiring Diagram

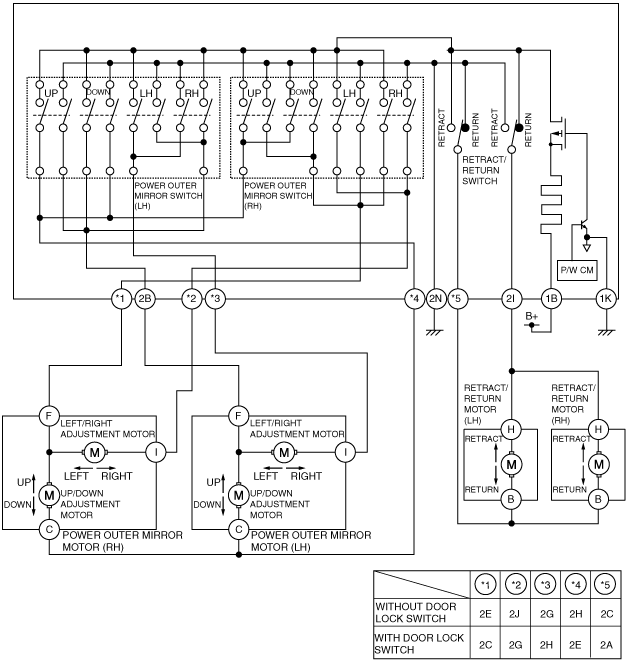

With retract/return function

am6zzn00003403

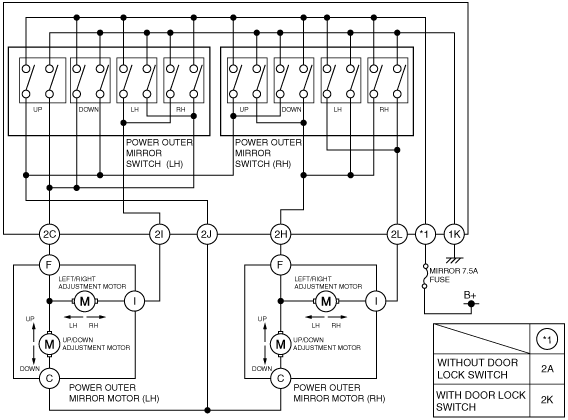

Without retract/return function

am6zzn00003404

Operation (With retractable outer mirror)

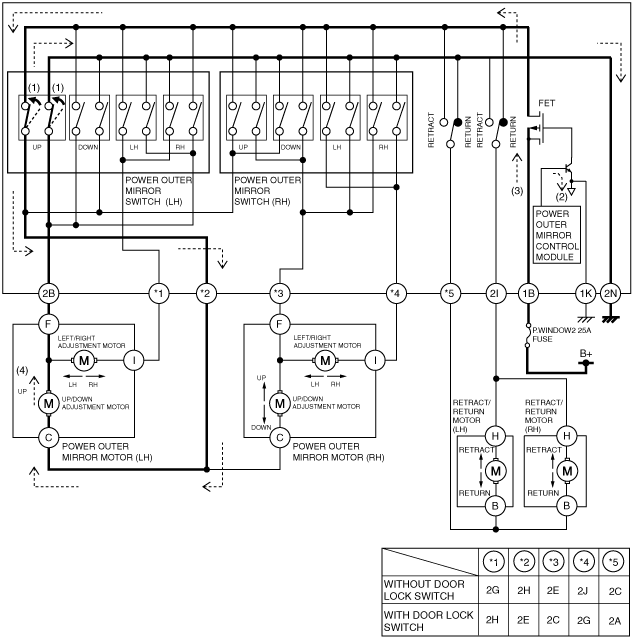

Outer mirror glass adjustment operation (Example: adjusting left outer mirror upward)

1.  When the upward switch is turned on (1), the power outer mirror control module turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, the up/down adjustment motor operates upward (4) and the outer mirror operates upward.

am6zzn00003474


Outer mirror glass retract/return operation (Example: retracting outer mirrors)

1.  When the switch is turned on (1) for retracting direction, the power outer mirror control module turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, the retract/return motor operates in the retracting direction (4) and the outer mirrors retract.

am6zzn00003475


IG OFF timer operation

•  When the ignition is switched from ON (engine off or on) to OFF, the IG OFF timer function inside the power outer mirror control module is turned on and the power outer mirror switch can be operated for approx. 40 s after IG OFF is detected.


Operation (Without retractable outer mirror)

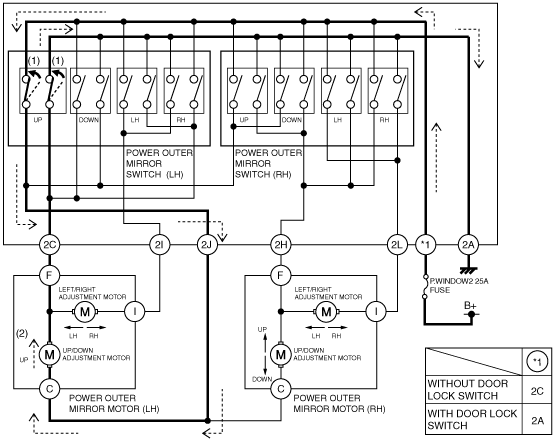

Outer mirror glass adjustment operation (Example: adjusting left outer mirror upward)

•  When the upward switch turns on (1), the up/down adjustment motor operates upward (2) and the outer mirror operates upward.
am6zzn00003476


IG OFF timer operation

•  When the ignition is switched from ON (engine off or on) to OFF, the IG OFF timer function inside the power outer mirror control module is turned on and the power outer mirror switch can be operated for approx. 40 s after IG OFF is detected.


Fail-safe

•  Not applicable
