LF CONTROL UNIT

id091400111400

Purpose

• The keyless beeper and keyless antenna are controlled by the input/output signals from the start stop unit.

Function

• The LF control unit controls the keyless beeper sound based on the signal from the start stop unit.

• The LF control unit sends the request signal from the keyless antenna based on the signal from the start stop unit.

Construction

• Installed inside the front side trim.

am6zzn00003715

Operation

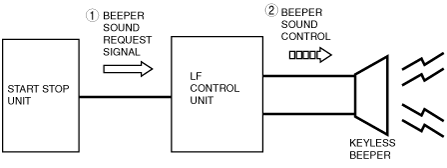

Keyless beeper control

1. The LF control unit sends the beeper sound request signal from the start stop unit.

2. The LF control unit sounds the keyless beeper when it receives the beeper sound request signal.

ac5wzn00001411

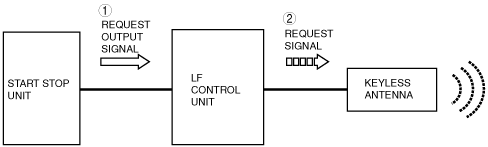

Keyless antenna control

1. The LF control unit sends the request send signal from the start stop unit.

2. The LF control unit sends the request signal from the keyless antenna when it receives the request send signal.

ac5wzn00001414

Fail-safe

• Function not equipped.
