SUNROOF MOTOR REMOVAL/INSTALLATION

id091500801800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

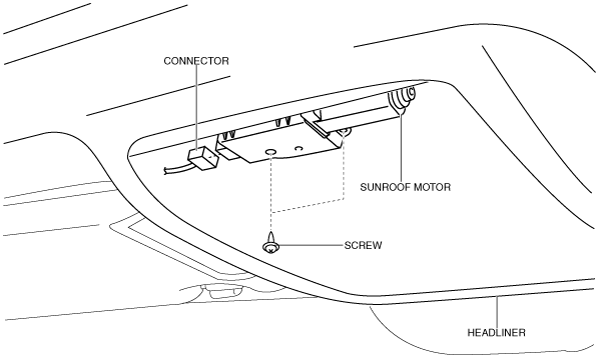

3.  Disconnect the connector.

ac5wzw00001514

4.  Remove screws.

5.  Remove the sunroof motor.

6.  Install in the reverse order of removal.
