SIDE STEP MOLDING REMOVAL/INSTALLATION

id091600801800

Removal

1.  Bend back the mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

2.  Move the side step molding in the direction of arrow (1) shown in the figure and remove clip A from the body while pinching clip A using pliers.

am6xuw00006380

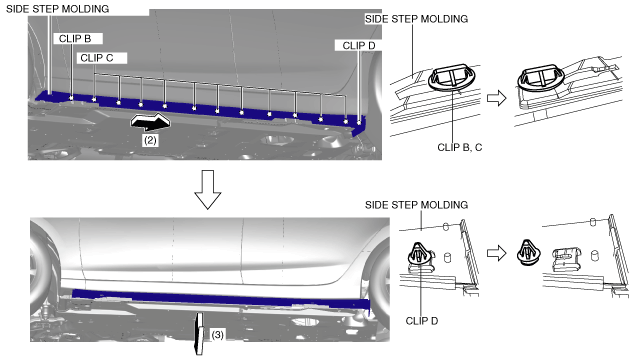

3.  Pull the side step molding in the direction of the arrow (2), (3) and remove it while detaching clip B, clips C, and clip D.

4SD

am6xuw00006311

WGN

am6zzw00011988

4.  After removing the side step molding, remove clip B, clips C and clip D from the body using a fastener remover.

Installation

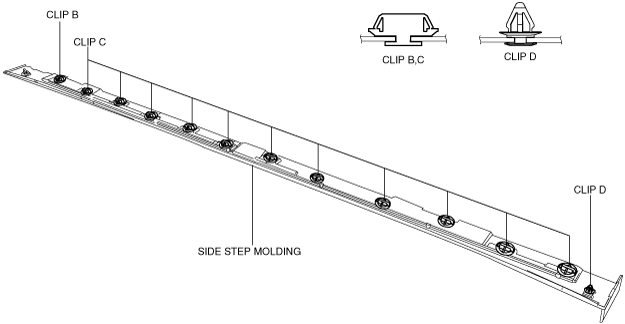

1.  Install the clip B, clips C and clip D to the side step molding.

4SD

am6xuw00006381

WGN

am6zzw00011989

2.  Press the side step molding in the direction of arrow (1) shown in the figure and install clip B to the body.

4SD

am6xuw00006312

WGN

am6zzw00011990

3.  Press the side step molding starting from the front of the vehicle and install clips A, C, and D.

4.  Install the mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)
