REAR PILLAR GARNISH REMOVAL/INSTALLATION

id091600804900

1.  Open the rear door.

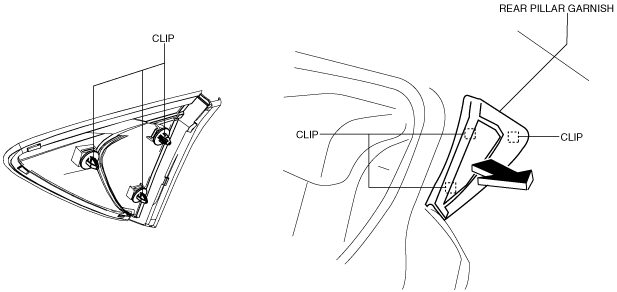

2.  Pull the rear pillar garnish in the direction of arrow shown in the figure and remove it while detaching the clips.

am6zzw00009423

3.  Install in the reverse order of removal.
