UPPER PANEL DISASSEMBLY/ASSEMBLY

id091700607100

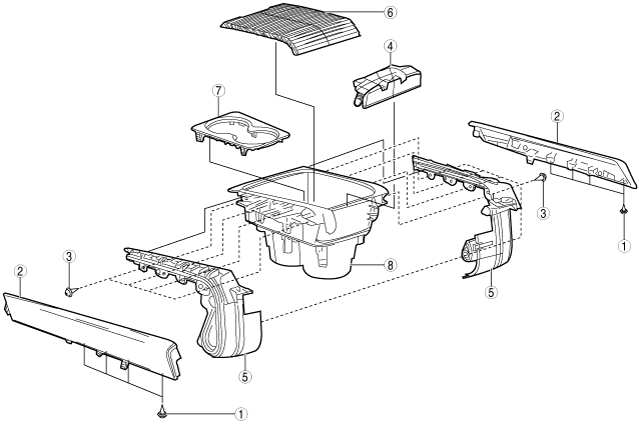

1.  Disassemble in the order indicated in the table.

aatjjw00010642

1	Screw
2	Console bracket
3	Screw
4	Panel up
5	Rail
6	Shutter
7	Console cover
8	Console box

2.  Assemble in the reverse order of disassembly.
