REAR CONSOLE DISASSEMBLY/ASSEMBLY

id091700898600

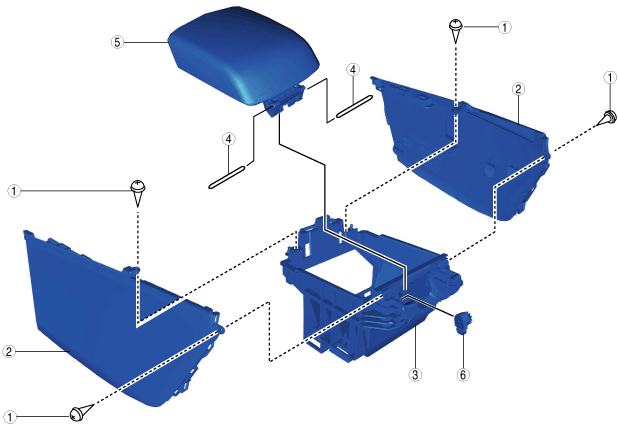

1.  Disassemble in the order indicated in the table.

am6xuw00007920

1	Screw
2	Side panel (See Side Panel Removal Note.)
3	Rear console box
4	Pin
5	Rear console lid
6	Damper

2.  Assemble in the reverse order of disassembly.

Side Panel Removal Note

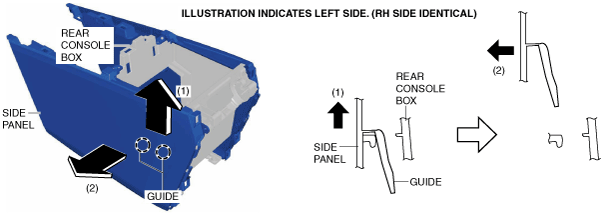

1.  Move the side panel in the order of arrows (1) and (2) shown in the figure and remove the guide from the rear console box.

am6xuw00007927
