HEADLIGHT LEVELING SWITCH

id091800010800

Purpose

• Changes the resistance value according to the position which the headlight leveling switch has been changed.

Function

• The position of the headlight leveling switch can be switched between 11 levels: 0 to 5.

• When the headlight leveling switch is turned upward, the headlight LO optical axis moves upward. When the switch is turned downward, the axis moves downward.

Construction

• Built into the cluster switch.

• Installed to the switch panel.

am6zzn00003813

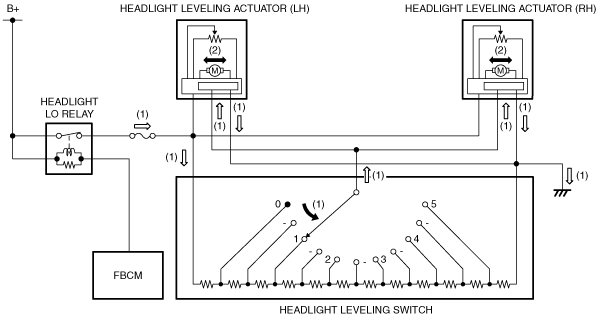

Operation

1. When the headlight leveling switch is operated with the headlights turned on, the resistance value changes according to the changed position, and electric current flows to the headlight leveling actuator.

2. When the motor is driven, the shaft moves back and forth and the reflector moves to change the optical axis.

am6zzn00002264

Fail-safe

• Function not equipped.
