SIGNATURE WING ILLUMINATION SHORT CORD REMOVAL/INSTALLATION


id091800204600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

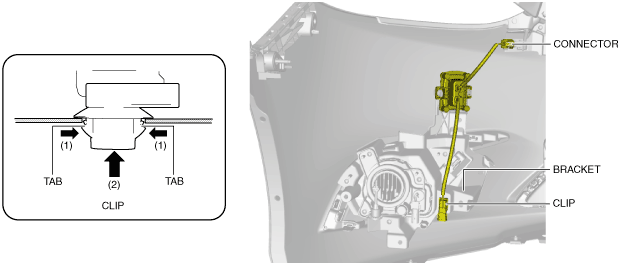

4.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to remove the clip from the bracket.

am6zzw00012742

5.  Disconnect the connector.

6.  While pressing tabs of the bracket in the direction of arrow (1) shown in the figure, pull the signature wing illumination short cord in the direction of arrow (2) shown in the figure to detach tabs of the bracket from the signature wing illumination short cord.

am6zzw00012743

7.  Remove the signature wing illumination short cord.

8.  Install in the reverse order of removal.
