MAP LIGHT INSPECTION

id091800801300

Map Light (Bulb Type)

Front map light

1.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

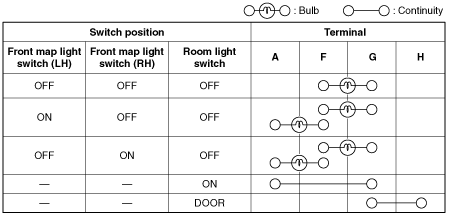

2.  Verify that the continuity between the front map light terminals is as indicated in the table.

am6zzw00012768

am6zzw00008046

•  If not as indicated in the table, replace the front map light or front map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.)

Rear map light

1.  Remove the rear map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

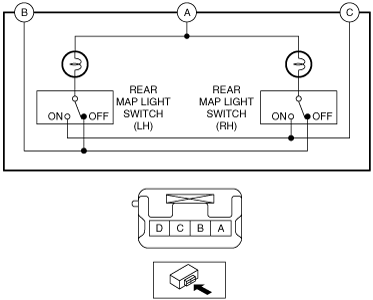

2.  Verify that the continuity between the rear map light terminals is as indicated in the table.

am6zzw00008047

am6zzw00008048

•  If not as indicated in the table, replace the rear map light or rear map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.)

Map Light (LED Type)

Front map light

1.  Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

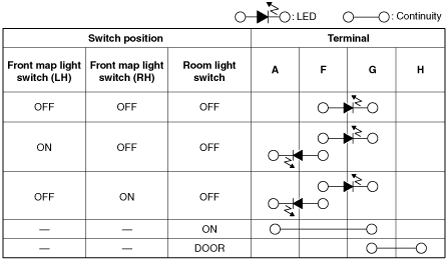

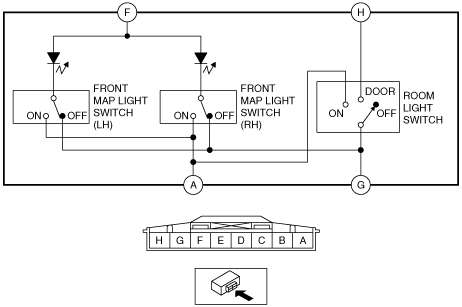

2.  Verify that the continuity between the front map light terminals is as indicated in the table.

am6zzw00012769

am6zzw00008056

•  If not as indicated in the table, replace the front map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

Rear map light

1.  Remove the rear map light. (See MAP LIGHT REMOVAL/INSTALLATION.)

2.  Verify that the continuity between the rear map light terminals is as indicated in the table.

am6zzw00012770

am6zzw00012771

•  If not as indicated in the table, replace the rear map light. (See MAP LIGHT REMOVAL/INSTALLATION.)
