FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

Front Fog Light (Bulb Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front splash shield No.2. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Partially peel back the mudguard and front under cover No.1. (See MUDGUARD REMOVAL/INSTALLATION.) (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

am6zzw00012779

5.  Remove the screws.

6.  Pull out the pins from the bracket to remove the front fog light and bracket.

am6zzw00009228

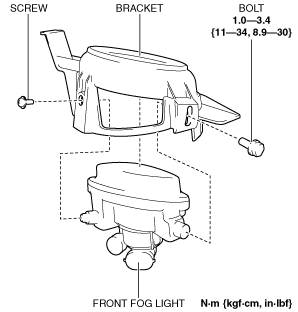

7.  Remove the bolt and screw.

am6zzw00012780

8.  Remove the front fog light.

9.  Install in the reverse order of removal.

10.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)

Front Fog Light (LED Type)

1.  Turn the steering wheel to the side where the fog light is to be removed until it locks.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the front splash shield No.2. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

4.  Partially peel back the mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

5.  Disconnect the connector.

am6zzw00012781

6.  Remove the screws.

7.  Remove the front fog light.

am6zzw00012782

8.  Install in the reverse order of removal.

9.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
