VANITY MIRROR ILLUMINATION INSPECTION

id091800808500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)

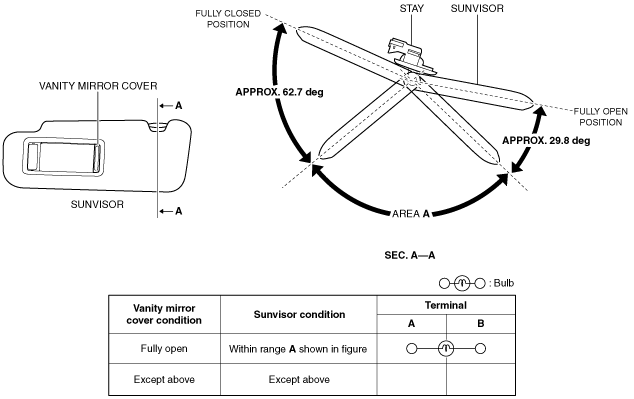

3.  Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.

am6zzw00012600

ac5wzw00007118

•  If not as indicated in the table, replace the vanity mirror illumination bulb or the sunvisor. (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.) (See SUNVISOR REMOVAL/INSTALLATION.)
