REAR WASHER HOSE REMOVAL/INSTALLATION

id091900801600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front splash shield No.2 (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

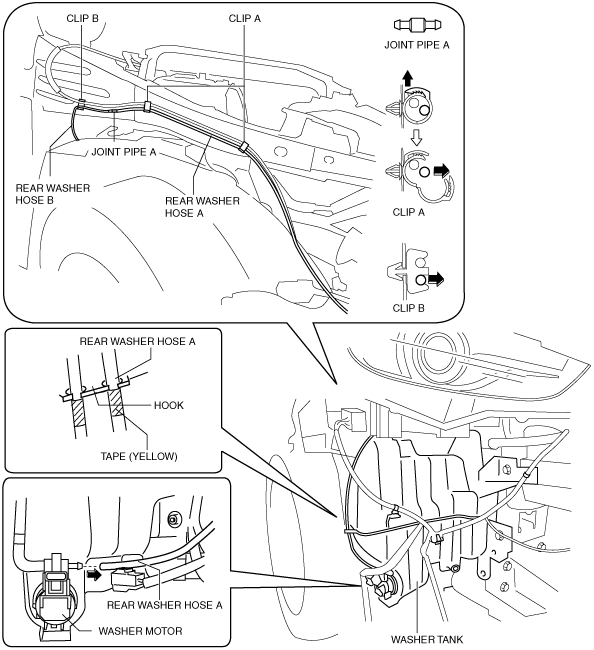

4.  Disconnect the rear washer hose A from the washer motor.

am6zzw00009077

5.  Remove the rear washer hose A from the washer tank hook.

6.  Remove the rear washer hose A from clips A.

7.  Disconnect the rear washer hose A from the joint pipe A and remove it.

8.  Remove the rear washer hose B from clip B.

9.  Disconnect the rear washer hose B from the joint pipe A.

10.  Remove the sunroof seaming welt. (with sunroof system)

11.  Remove the A pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

12.  Remove the following parts:

L.H.D.

1.  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

4.  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

5.  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

6.  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

7.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

8.  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

9.  Tuner and amp unit (with center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

R.H.D.

1.  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3.  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

4.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

5.  Tuner and amp unit (with center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

13.  Remove the grommet from the body.

am6zzw00012870

14.  Disconnect the rear washer hose B from the joint pipe B and remove it.

15.  Disconnect the rear washer hose C from the joint pipe B.

16.  Remove the following parts:

(1)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(2)  Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(3)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(4)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(7)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(8)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(10)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(11)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(12)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(13)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(14)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(15)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(16)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(17)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(18)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

17.  Remove the tape and clips shown in the figure.

Without sunroof

am6zzw00012871

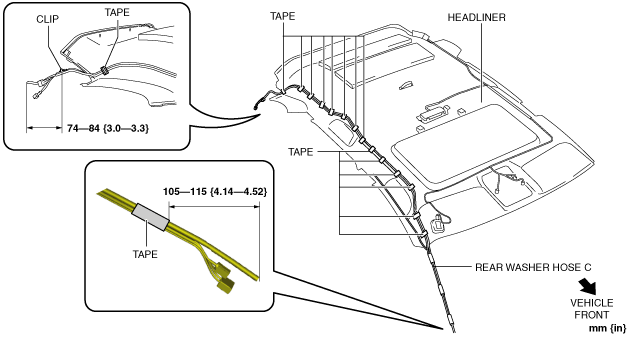

With sunroof

am6zzw00012872

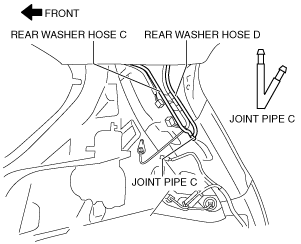

18.  Disconnect the rear washer hose C from the joint pipe C and remove it.

ac5wzw00001628

19.  Disconnect the rear washer hose D from the joint pipe C.

20.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

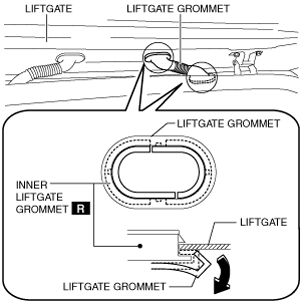

21.  Partially peel the liftgate grommet in the direction of arrow shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

am6zzw00012873

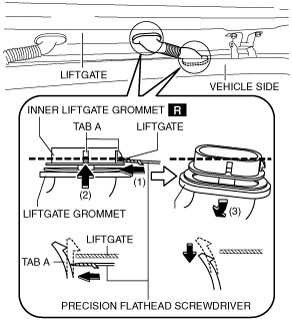

22.  Using a tape-wrapped flathead screwdriver, press the inner liftgate grommet tabs A in the directions of arrows (1) and (2) shown in the figure and remove the inner liftgate grommet from the liftgate in the direction of arrow (3).

am6zzw00012874

23.  Remove the bolt. (with DAB antenna amplifier)

am6zzw00012875

24.  Remove the fastener (with DAB antenna amplifier).

25.  Set the DAB antenna amplifier aside in the direction of the arrow shown in the figure. (with DAB antenna amplifier).

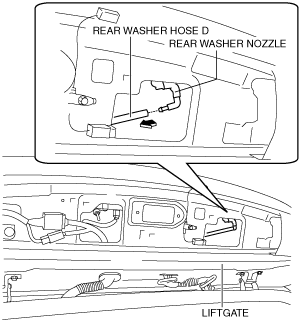

26.  Disconnect the rear washer hose D from the rear washer nozzle and remove it.

am6zzw00010782

27.  Install in the reverse order of removal.
