TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION

id092000014300


L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
(4)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(5)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(6)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(7)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(8)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(9)  Tuner and amp unit (TAU) component (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

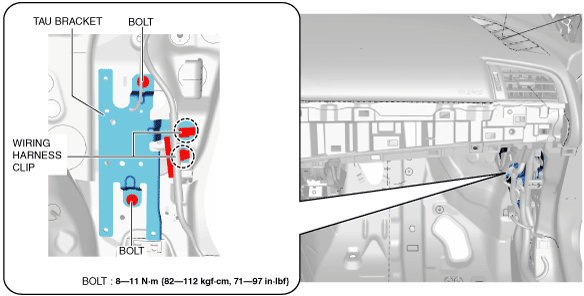

3.  Pull out the wiring harness clip.

am6zzw00013556

4.  Remove the bolts.

5.  Remove the fastener.

am6zzw00013557

6.  Remove the TAU bracket.

7.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(4)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(5)  Tuner and amp unit (TAU) component (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

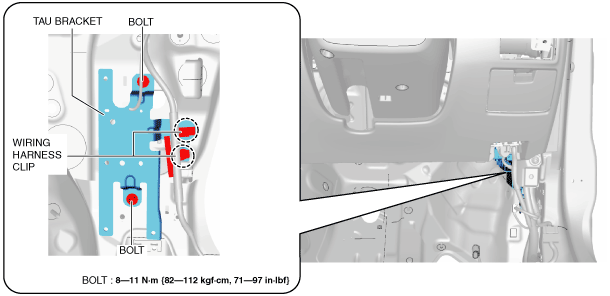

3.  Pull out the wiring harness clip.

am6zzw00013558

4.  Remove the bolts.

5.  Remove the fastener.

am6zzw00013557

6.  Remove the TAU bracket.

7.  Install in the reverse order of removal.
