DAB ANTENNA AMPLIFIER [WITH CENTER DISPLAY]
id0920zz014500
Purpose, Function
• Amplifies the electric signal from the glass antenna and sends it to the tuner and amp unit (TAU).

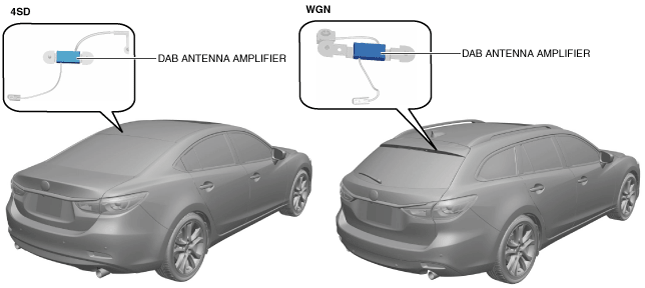

Construction
4SD
• The DAB antenna amplifier is located inside the rear header.
WGN
• The DAB antenna amplifier is located inside the liftgate upper trim.
Fail-safe
• Not applicable
