INSTRUMENT CLUSTER INSPECTION

id092200010600

Speedometer inspection

Using a speedometer tester

Caution

• When only the front or the rear wheels are driven using a speedometer tester, the DSC HU/CM may determine that the vehicle speed signal is in error and the engine cannot be stopped by the normal operation. If the engine cannot be stopped, perform an emergency engine stop operation. (See SERVICE CAUTIONS.)

1. Adjust the tire pressure to the specification.

2. Using a speedometer tester, verify that the tester reading is as indicated in the following table.

European (L.H.D. U.K.), General (L.H.D. R.H.D.) specs., Australian specs.

Speedometer tester indication (km/h)	Allowable range (km/h)
20	20—26
40	40—46
60	61—67
80	81—87
100	102—108
120	122—130
140	142—151
160	163—171
180	183—182
200	204—212
220	224—233
240	244—254

U.K. specs.

Speedometer tester indication (mph)	Allowable range (mph)
10	10—14
20	20—24
30	30—34
40	40—44
50	51—55
60	61—65
70	71—76
80	81—87
90	91—97
100	102—107
110	112—117
120	122—128
130	132—138
140	142—148
150	153—159

General (L.H.D. R.H.D.) specs.

Speedometer tester indication (km/h)	Allowable range (km/h)
20	17—23
40	37—43
60	57—63
80	77—83
100	97—103
120	116—124
140	136—144
160	156—164
180	176—184
200	196—204
220	215—225
240	235—245

3. Verify that the speedometer reading is within the range indicated in the table.

• If the speedometer does not operate or the indication is not within the allowable range, inspect the DTC inspection for the following control module and the related wiring harnesses.

― PCM

― TCM (ATX)

― DSC HU/CM

• If the PCM, TCM (ATX), DSC HU/CM, and related wiring harnesses are normal, replace the instrument cluster.

Using the M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Data logger”

(2) “Module”

(3) “IC”

3. Using “SPEEDOMTR”, verify that the displayed information is as indicated in the table.

European (L.H.D. U.K.), General (L.H.D. R.H.D.) specs., Australian specs.

M-MDS display	Speedometer display
60 km/h	Speedometer needle moves to approx. 61—67 km/h {38—42 mph}.
120 km/h	Speedometer needle moves to approx. 122—130 km/h {75—81 mph}.
Off	Speedometer needle moves to the bottommost position.

General (L.H.D. R.H.D.) specs.,

M-MDS display	Speedometer display
60 km/h	Speedometer needle moves to approx. 57—63 km/h {35—40 mph}.
120 km/h	Speedometer needle moves to approx. 116—124 km/h {72—77 mph}.
Off	Speedometer needle moves to the bottommost position.

• If the speedometer does not operate or the indication is not within the allowable range, inspect the DTC inspection for the following control module and the related wiring harnesses.

― PCM

― TCM (ATX)

― DSC HU/CM

• If the PCM, TCM (ATX), DSC HU/CM, and related wiring harnesses are normal, replace the instrument cluster.

Tachometer inspection

Caution

• If the engine speed exceeds the allowable range, the engine could be damaged. Therefore, when inspecting the tachometer, do not allow the engine speed to exceed the allowable range indicated on the tachometer.

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Data logger”

(2) “Module”

(3) “IC”

3. Using “TACHOMTR”, verify that the displayed information is as indicated in the table.

M-MDS display

Tachometer display

3000 RPM

Tachometer needle moves to approx. 3,050 rpm.

6000 RPM

Tachometer needle moves to approx. 6,100 rpm.

Off

Tachometer needle moves to bottommost position.

• If the tachometer does not operate or the indication is not within the allowable range, inspect the DTC inspection for the following control module and the related wiring harnesses.

― PCM

• If the PCM and related wiring harnesses are normal, replace the instrument cluster.

LCD Inspection

Type A

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Data logger”

(2) “Module”

(3) “IC”

3. Using “LCD_SEG”, verify that the LCD is illuminated.

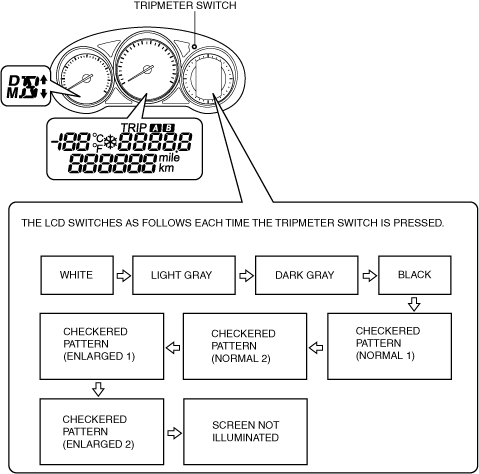

am6zzw00011543

• If there are any non-illuminated area, replace the instrument cluster.

Type B

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Data logger”

(2) “Module”

(3) “IC”

3. Using “LCD_SEG”, verify that the LCD is illuminated.

• If there are any non-illuminated area, replace the instrument cluster.

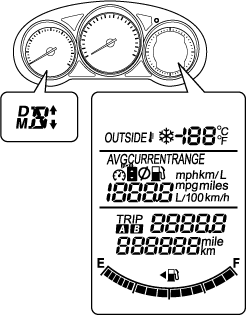

am6zzw00011544

Warning/Indicator Light Illumination Inspection

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Data logger”

(2) “Module”

(3) “IC”

3. Using “WL+IL”, verify that the warning/indicator lights in the following table are illuminated.

• If any of the warning/indicator lights are not displayed, replace the instrument cluster.

Type A

am6zzn00003348

×: Applicable

—: Not applicable

No.	Name	Multi-information display	Center display	Comment
1	Security indicator light	—	—	—
2	Air bag/front seat belt pretensioner system warning light	—	×	—
3	ABS warning light	—	×	—
4	Electric parking brake warning light	×	×	—
5	Lights-on indicator light	×	—	—
6	Front fog light indicator light	kkn	kkn	kkn
7	i-stop warning light (amber)/indicator light (green)	kkn	kkn	kkn
8	Cruise main indicator light (amber)/cruise set indicator light (green)	—	—	With cruise control system
8	Mazda radar cruise control (MRCC) warning light (amber)/indicator light (green)	×	—	With MRCC
9	Turn signal/hazard warning indicator lights	—	—	—
10	Master warning light	×	×	—
11	Low fuel warning light	—	×	—
12	Brake system warning light	×	×	—
13	Electric parking brake warning light	kkn	kkn	kkn
14	Glow indicator light	kkn	kkn	kkn
15	Headlight high-beam indicator light	—	—	—
16	Charging system warning light	×	×	—
17	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	×	—
18	Smart city brake support (SCBS) OFF indicator light	—	—	With SCBS system
19	LED headlight warning light	—	×	With front combination light (LED type)
20	Engine oil warning light	×	×	—
21	DSC OFF indicator light	—	—	—
22	High beam control (HBC) system warning light (amber)/indicator light (green)	×	×	With HBC System
22	Adaptive led headlight indicator light (green)/adaptive led headlight warning light (amber)	×	×	With adaptive led headlight
23	Seat belt warning light	—	—	—
24	Rear fog light indicator light	kkn	kkn	With rear fog light
25	Tire pressure monitoring system warning light	×	×	With TPMS
26	TCS/DSC indicator light	—	×	—
27	Select mode indication	—	—	ATX
	Shift position indicator/gear position indicator	—	—	—
	Gear shift indicator	—	—	MTX
28	Check engine light	—	×	—

Type B

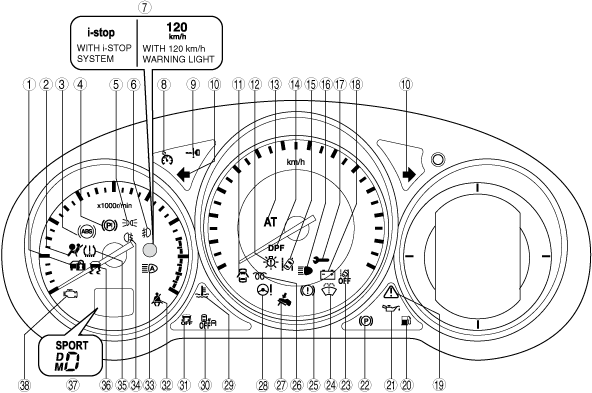

am6zzn00003356

×: Applicable

—: Not applicable

No.	Name	Center display	Comment
1	Security indicator light	—	—
2	Air bag/front seat belt pretensioner system warning light	×	—
3	ABS warning light	×	—
4	Electric parking brake warning light	×	—
5	Lights-on indicator light	—	—
6	Front fog light indicator light	kkn	kkn
7	i-stop warning light (amber)/indicator light (green)	kkn	kkn
7	120 km/h warning light	kkn	With 120 km/h warning light
8	Cruise main indicator light (amber)/cruise set indicator light (green)	—	With cruise control system
9	KEY warning light (red)/indicator light (green)	×	—
10	Turn signal/hazard warning indicator lights	—	—
11	Door-ajar warning light	—	—
12	LED headlight warning light	×	With front combination light (LED type)
13	Automatic transaxle warning light	×	ATX
14	Diesel particulate filter indicator light	kkn	SKYACTIV-D 2.2
15	Lane departure warning system (LDWS) warning light (amber)/indicator light (green)	×	With LDWS
16	Headlight high-beam indicator light	—	—
17	Wrench indicator light	×	—
18	Charging system warning light	×	—
19	Master warning light	×	—
20	Low fuel warning light	×	—
21	Engine oil warning light	×	—
22	Electric parking brake warning light	kkn	—
23	LDWS OFF indicator light	—	With LDWS
24	Low washer fluid level warning light	×	With washer fluid-level sensor
25	Brake system warning light	×	—
26	Glow indicator light	kkn	kkn
27	Brake pedal operation demand indicator light	—	—
28	Power steering malfunction indicator light	×	—
29	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	—
30	Blind spot monitoring (BSM) off indicator light	—	—
31	DSC OFF indicator light	—	—
32	Seat belt warning light	—	—
33	High beam control (HBC) system warning light (amber)/indicator light (green)	×	With HBC system
33	Adaptive led headlight indicator light (green)/adaptive led headlight warning light (amber)	×	With adaptive led headlight
34	Rear fog light indicator light	×	With rear fog light
35	Tire pressure monitoring system warning light	×	With TPMS
36	TCS/DSC indicator light	×	—
37	Select mode indication	—	ATX
	Shift position indicator/gear position indicator	—	—
	Gear shift indicator	—	MTX
38	Check engine light	×	—

Alarm Inspection

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Data logger”

(2) “Module”

(3) “IC”

3. Using “ALARM”, verify that the buzzer sounds.

• If the buzzer does not sound, replace the instrument cluster.

M-MDS display	Tachometer display
3000 RPM	Tachometer needle moves to approx. 3,050 rpm.
6000 RPM	Tachometer needle moves to approx. 6,100 rpm.
Off	Tachometer needle moves to bottommost position.
