INSTRUMENTATION/DRIVER INFO.

id092200018200


Outline

•  A multi-information display has been adopted to the instrument cluster which displays the fuel gauge, trip computer, and vehicle information. (Type A instrument cluster)
•  A parking assist system has been adopted which detects obstructions in the blind spot (vehicle front/rear/corners) to a wide extent using ultrasonic sensors and notifies the driver of the obstructions. (With parking sensor system)
•  An indicator unit has been adopted which displays the passenger seat belt warning light and PAD indicator light.

Specification

Item

Specification
Instrument cluster
Warning lights
Brightness level
(cd/m2)
200―300
Light source
LED
Indicator lights
Brightness level
(cd/m2)
36―300
Light source
LED
Warning beep
Oscillation frequency
(Hz)
1,500―2,000
Output sound pressure
(dB)
65.0―80.0
Speedometer
System
Stepping motor type
Display
Analog needle
Input signal communication system
CAN system
Tachometer
System
Stepping motor type
Display
Analog needle
Input signal communication system
CAN system
Low engine coolant temperature indicator light/High engine coolant temperature warning light
Operation
—
Input signal communication system
CAN system
Fuel gauge
System
LCD
Input signal source
Fuel gauge sender unit
Remaining fuel quantity (L {US gal, lmp gal}) in fuel tank (instrument cluster type A)
Needle position
EMPTY
1/4
2/4
3/4
FULL
2WD
Approx. 6 {2, 1}
Approx. 17 {4.5, 3.7}
Approx. 28 {7.4, 6.2}
Approx. 38 {10, 8.4}
Approx. 49 {13, 11}
4WD
Approx. 6 {2, 1}
Approx. 18 {4.8, 4.0}
Approx. 29 {7.7, 6.4}
Approx. 40 {11, 8.8}
Approx. 51 {13, 11}
Instrument cluster
Fuel gauge
Remaining fuel quantity (L {US gal, lmp gal}) in fuel tank (instrument cluster type B)
Segment indication number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
SKYACTIV-G 2.0, SKYACTIV-G 2.5
6—8 {1.6—2.1, 1.4—1.7}
8—10 {3.0—2.6, 2.0—2.1}
10—12 {2.7—3.1, 2.2—2.6}
12—14 {3.2—3.6, 2.7—3.0}
14—16 {3.7—4.2, 3.1—3.5}
16—18 {4.3—4.7, 3.6—3.9}
18—22 {4.8—5.8, 4.0—4.8}
22—27 {5.9—7.1, 6.0—6.8}
27—31 {7.2—8.1, 5.5—6.3}
31—35 {8.2—9.2, 6.9—7.6}
35—39 {9.3—10.0, 7.7—8.5}
39—43 {10.4—11.3, 8.6—9.4}
43—47 {11.4—12.4, 9.5—10.0}
47—52 {12.5—13.7, 10.4—11.4}
52—62 {14—16, 12—13}
SKYACTIV-D 2.2
6—8 {1.6—2.1, 1.4—1.7}
8—10 {3.0—2.6, 2.0—2.1}
10—12 {2.7—3.1, 2.2—2.6}
12—14 {3.2—3.6, 2.7—3.0}
14—16 {3.7—4.2, 3.1—3.5}
16—18 {4.3—4.7, 3.6—3.9}
18—22 {4.8—5.8, 4.0—4.8}
22—26 {5.9—6.8, 4.9—5.7}
26—31 {6.9—8.1, 5.9—6.8}
31—35 {8.2—9.2, 6.9—7.6}
35—39 {9.3—10.0, 7.7—8.5}
39—43 {10.4—11.3, 8.6—9.4}
43—47 {11.4—12.4, 9.5—10.0}
47—51 {12.5—13.4, 10.4—11.2}
51—62 {14—16, 12—13}
Remaining fuel level (L {US gal, lmp gal}) when fuel tank level warning light illuminates
Approx. 10 {2.6, 2.2}
Invalid remaining fuel level. (L {US gal, lmp gal})
2WD
Approx. 0.85 {0.22, 0.19}
4WD
Approx. 0.95 {0.25, 0.21}
Odometer
System
LCD
Display area
0—999,999
Minimum display unit
(km {mile})
1 {0.6}
Input signal communication system
CAN system
Tripmeter
System
LCD
Display area
Returns to 0.0 from 999.9, calculation continues
Minimum display unit
(km {mile})
0.1 {0.06}
Input signal communication system
CAN system
Horn
HI
Oscillation frequency
(Hz)
470―530
Waveform
Spiral
LO
Oscillation frequency
(Hz)
390―440
Waveform
Spiral

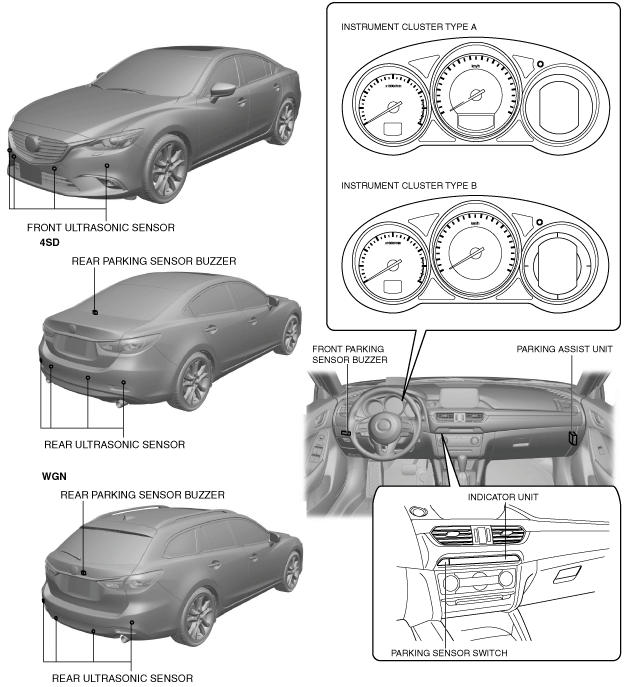

Structural View

am6zzn00003998
