AMBIENT TEMPERATURE DISPLAY
id092200021500
Purpose
• The ambient temperature display notifies the user of the ambient temperature.
Function
• The instrument cluster displays the ambient temperature based on the ambient temperature signal sent from the PCM as a CAN signal.
• The ambient temperature is displayed between -40—70°C {-40―160°F} If the ambient temperature is -40°C {-40°F} or less, -40°C {-40°F} is displayed, and 70°C {160°F} is displayed if the temperature is 70°C {160°F} or more.
Road ice warning function
-
• When the instrument cluster receives an ambient temperature signal of 4°C {39°F} or less from the PCM, it displays the ice mark. After receiving the ambient temperature signal of 4°C {39°F} or more, it flashes the ice mark and the ambient temperature display for about 10 s to warn the user that the road surface may be icy.
• Once the instrument cluster performs the road ice warning, it will not perform it again until it receives an ambient temperature of 6°C {43°F} or more.

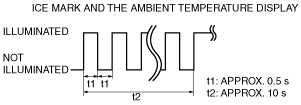

• The ice mark and ambient temperature flashing pattern is as indicated in the figure.
Construction
• The ambient temperature is displayed on the multi-information display (instrument cluster type A)/LCD (instrument cluster type B) in the instrument cluster.
Operation

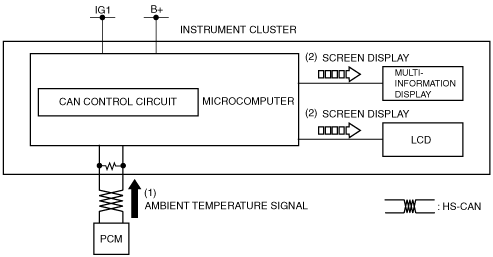

1. When the ignition is switched ON, the instrument cluster receives an ambient temperature signal from the PCM (1).
2. Based on the ambient temperature signal, the instrument cluster displays the ambient temperature and ice mark on the multi-information display (instrument cluster type A)/LCD (instrument cluster type B) (2).
Fail-safe
• Function not equipped.
