PANEL LIGHT
id092200033000
Purpose
• The panel light adjusts the instrument cluster and steering switch illumination brightness.
Function
• The instrument cluster adjusts the brightness of the following illumination lights when a TNS illumination signal sent via CAN transmission from the front body control module (FBCM) is received.
-
― Instrument cluster
― Steering switch
― Cluster switch
― Hazard warning switch
― Audio unit
― Commander switch
― Drive selection switch
― Shift panel (indicator)
― Electric parking brake switch
― CD player
― DVD/CD player
― Indicator unit
• The instrument cluster changes the brightness of the illumination lights according to the rotation signal of the panel light control switch.
Construction
• The panel light control switch is set in the instrument cluster.

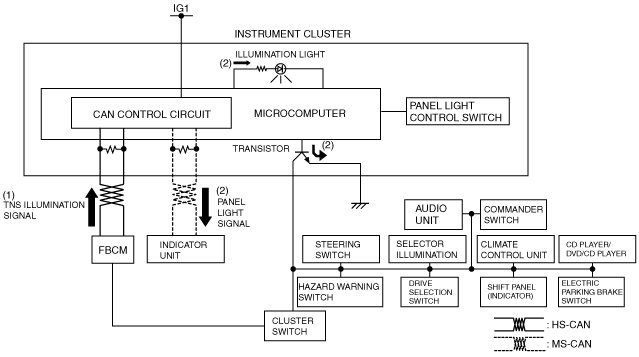

Operation
1. When the ignition is switched ON (engine off or on), the instrument cluster receives (1) the TNS illumination signal from the front body control module (FBCM).
2. The instrument cluster performs the following controls when it receives the TNS illumination signal.
-
― Changes the brightness of the instrument panel illumination.
― Outputs a panel light signal via CAN signal to the indicator unit.
― Turns on the panel light circuit transistor.
3. When the transistor turns on, a ground circuit with the panel light is established and the panel light illuminates.

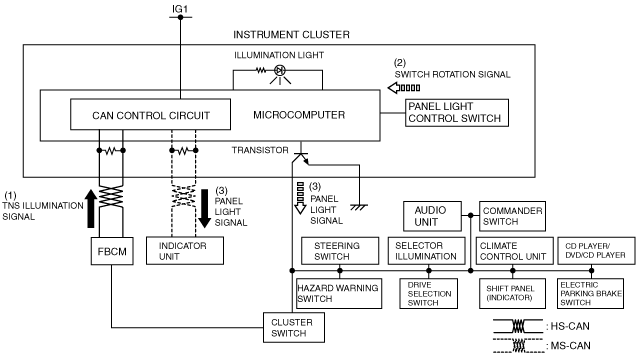

Panel light control switch operation
-
1. When the ignition is switched ON (engine off or on), the instrument cluster receives (1) the TNS illumination signal from the front body control module (FBCM).
2. The instrument cluster changes the brightness of the panel light according to the rotation angle when it receives a panel light control switch rotation signal while receiving the TNS illumination signal.
3. The instrument cluster outputs a panel light signal to related units.
Fail-safe
• Function not equipped.
