REAR BODY CONTROL MODULE (RBCM) BRACKET REMOVAL/INSTALLATION

id094000003000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Remove the trunk side pocket. (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

4.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

5.  Pull back the trunk side trim (LH) to a position which allows for the removal of the rear body control module (RBCM). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

6.  Remove the Rear body control module (RBCM). (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.)

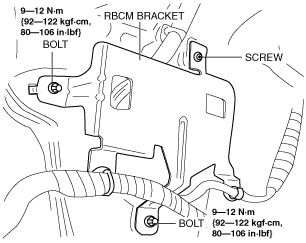

7.  Remove the bolts.

am6zzw00008719

8.  Remove the screw.

9.  While pressing the clip tabs in the direction of the arrows (1) shown in the figure, press the clip in the direction of the arrow (2) to detach the clip tabs from the bracket.

am6zzw00008720

10.  Detach the clip.

11.  Move the rear body control module (RBCM) in the direction of the arrow (3) shown in the figure, pull it in the direction of the arrow (4) shown in the figure, and disengage the tab from the body.

am6zzw00008721

12.  Remove the rear body control module (RBCM) bracket.

13.  Install in the reverse order of removal.
