FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Mark

am6zzb00000349

Removal Procedure

1.  Drill the 15 locations indicated by (A) shown in the figure.

2.  Drill the 4 locations indicated by (B) shown in the figure.

Note

•  When drilling the 4 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

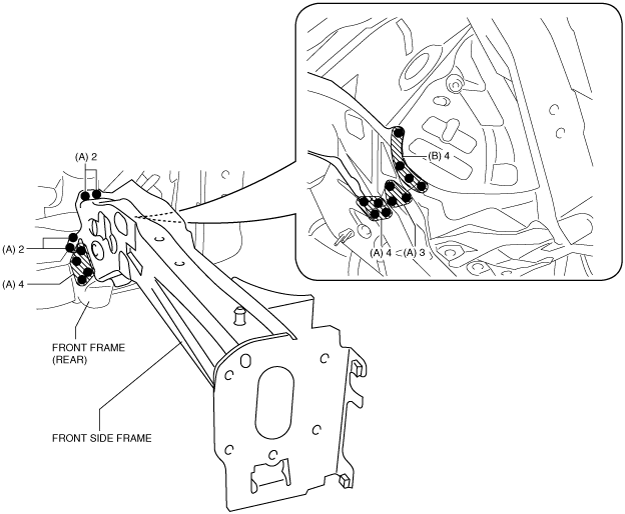

am6zzb00000350

3.  Remove the front side frame from the front frame (rear).
