COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008741700

Symbol Mark

am6zzb00000329

Removal Procedure

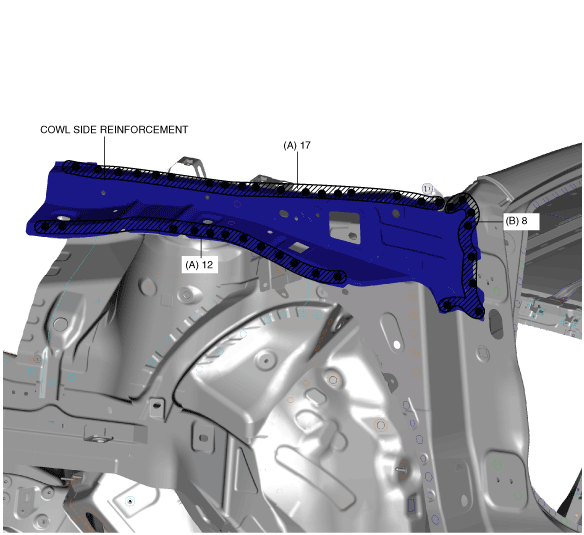

1.  Drill the 29 locations indicated by (A) shown in the figure.

am6zzb00000330

2.  Drill the 8 locations indicated by (B) shown in the figure, then remove the cowl side reinforcement.
