FRONT SIDE FRAME (PARTIAL CUTTING) INSTALLATION [PANEL REPLACEMENT]

id098008742200

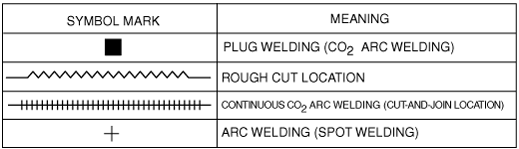

Symbol Mark

am6zzb00000527

Installation Procedure

Caution

•  The cut and joint area indicates the maximum size range of the installation position.

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

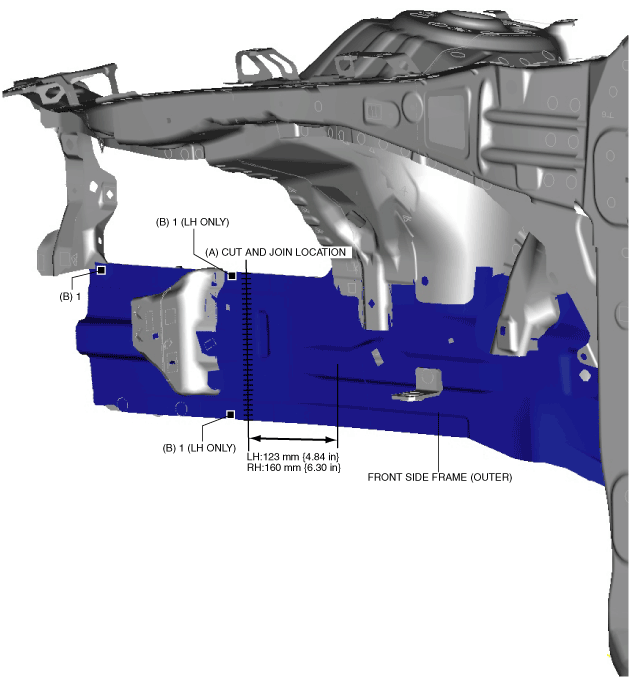

3.  Cut and join location indicated by (A) shown in the figure.

am6zzb00000357

4.  Plug weld the 3 locations (LH), 1 location (RH) indicated by (B) shown in the figure, then install the front side frame (outer).

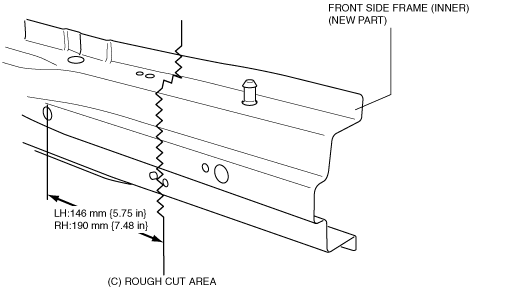

5.  To cut and join the new and existing parts, rough cut the new part at the specified location shown in the figure, and chamfer the joint surfaces of the new and existing parts.

am6zzb00000358

6.  Make a reinforcement panel using the material from the front side frame (inner).

7.  Plug weld the 4 locations (LH), 6 locations (RH) indicated by (D) shown in the figure, then install the reinforcement to the new front side frame (inner).

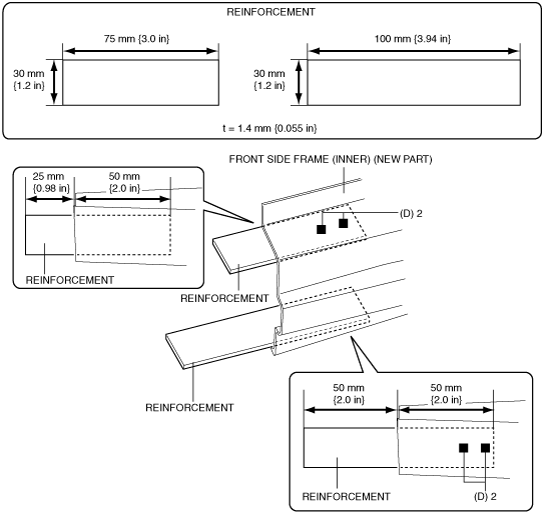

LH

am6zzb00000514

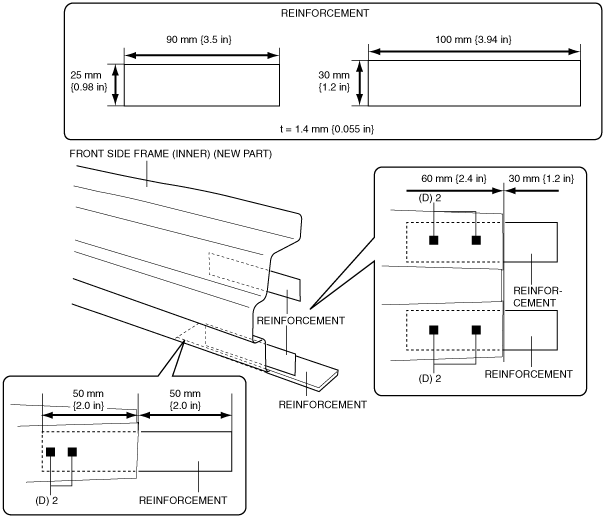

RH

am6zzb00000360

8.  Plug weld 3 locations (LH), 2 locations (RH) indicated by (E) shown in the figure.

Note

•  Press fit the reinforcement panel and the body side material, and then weld them.

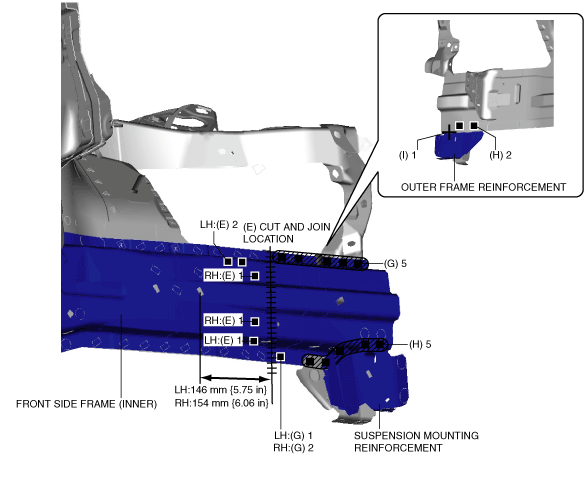

am6zzb00000361

9.  Cut and join location indicated by (F) shown in the figure.

10.  Plug weld the 6 locations (LH), 7 locations (RH) indicated by (G) shown in the figure, then install the front side frame (inner).

11.  Plug weld the 7 locations indicated by (H) shown in the figure.

12.  Plug weld the 1 location indicated by (I) shown in the figure, then install the suspension mounting reinforcement and outer frame reinforcement.
