CENTER PILLAR REMOVAL [PANEL REPLACEMENT]

id098008743900

Symbol Mark

am6zzb00000392

Removal Procedure

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

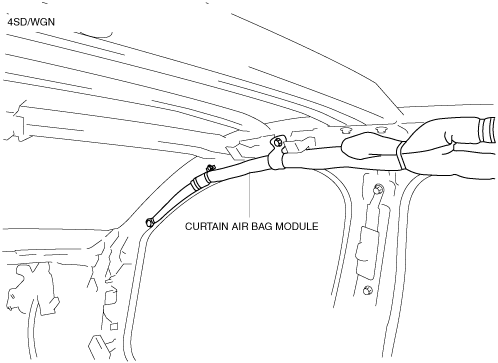

Front-side

am6zzb00000393

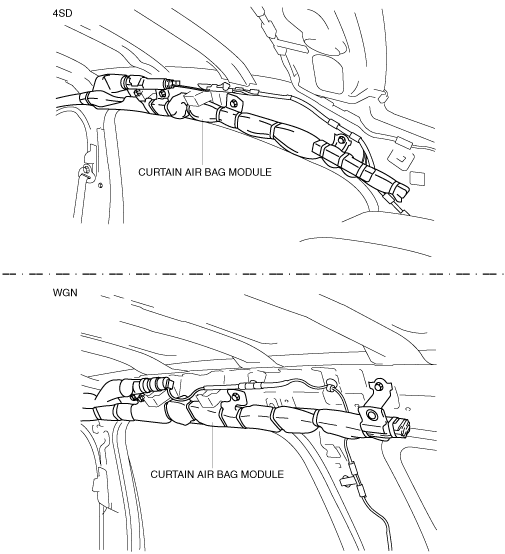

Rear-side

am6zzb00000394

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

am6zzb00000395

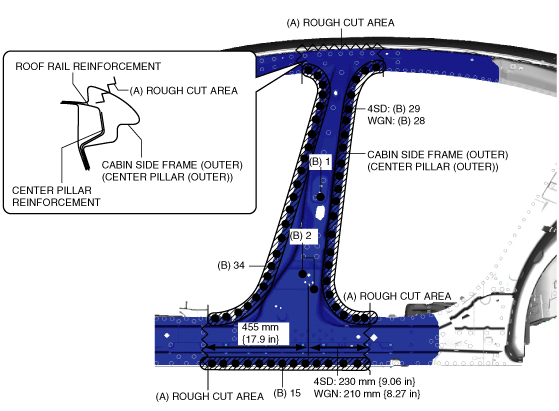

1.  Rough cut the 3 locations indicated by (A) shown in the figure.

2.  Drill the 81 locations (4SD), 80 locations (WGN) indicated by (B) shown in the figure, then remove the cabin side frame (outer) (center pillar (outer)).

am6zzb00000396

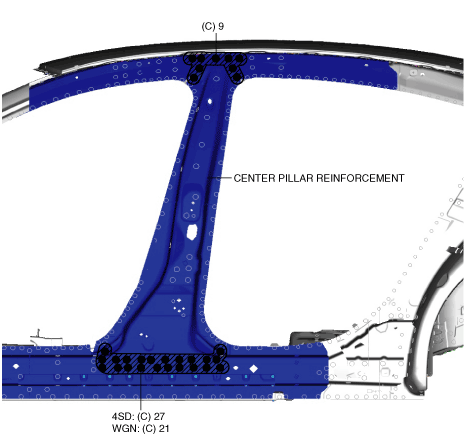

3.  Drill the 36 locations (4SD), 30 locations (WGN) indicated by (C) shown in the figure, then remove the center pillar reinforcement.

am6zzb00000397

4.  Rough cut the location (D) shown in the figure.

5.  Drill the 5 locations indicated by (E) shown in the figure.

6.  Drill the 6 locations indicated by (F) from the room side shown in the figure.

7.  Pull the center pillar (inner) in the direction of arrow shown in the figure, then remove it from between the side sill (inner) and side sill reinforcement.

am6zzb00000517
