FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008828300

Symbol Mark

am6zzb00000345

Removal Procedure

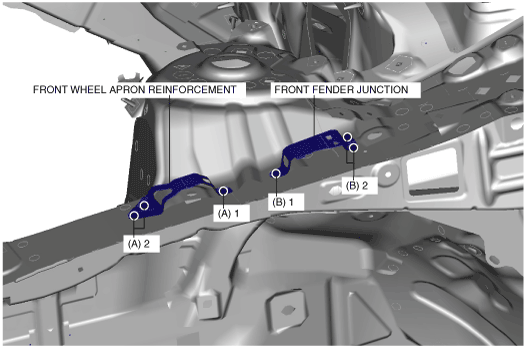

1.  Drill the 3 locations indicated shown in the figure.

am6zzb00000346

2.  Remove the front wheel apron reinforcement.

3.  Drill the 3 locations indicated by (B) shown in the figure.

4.  Remova the front fender junction.
