TRUNK FLOOR PANEL REMOVAL [PANEL REPLACEMENT]

id098008829500

Symbol Mark

am6zzb00000467

Removal Procedure

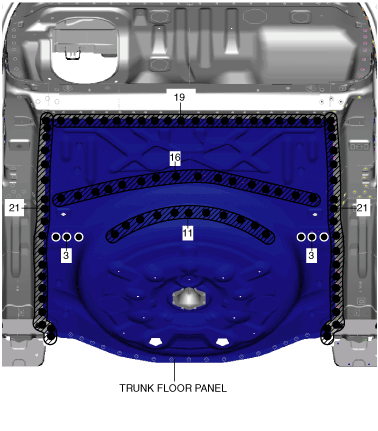

1.  Drill the 94 locations shown in the figure.

Caution

•  When drilling the 94 locations shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am6zzb00000468

2.  Remove the trunk floor panel.
