SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

id098008928100

Symbol Mark

am6zzb00000371

Removal Procedure

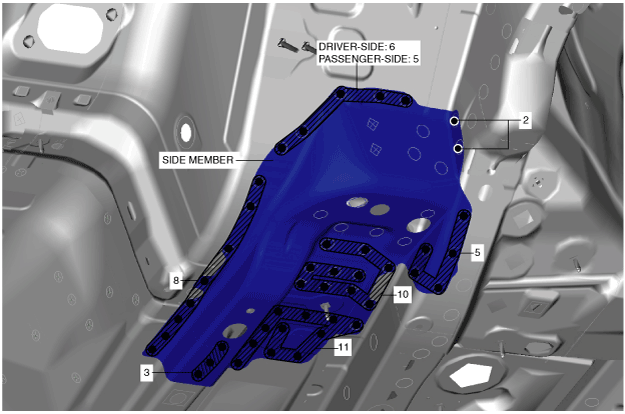

1.  Drill the 45 locations (driver-side), 44 locations (passenger-side) shown in the figure.

Note

•  When drilling the 45 locations (driver-side), 44 locations (passenger-side) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am6zzb00000372

2.  Remove the side member.
