COWL UPPER PLATE REMOVAL [PANEL REPLACEMENT]

id098008957100

Symbol Mark

am6zzb00000362

Removal Procedure

1.  Drill the 9 locations indicated by (A) shown in the figure.

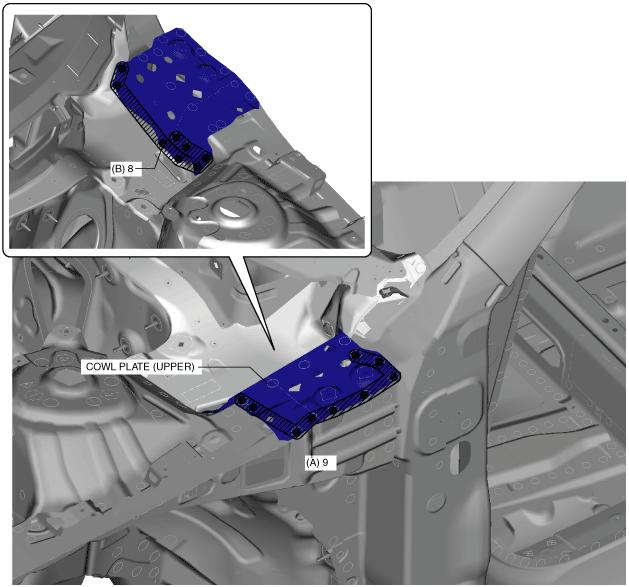

am6zzb00000363

2.  Drill the 8 locations indicated by (B) shown in the figure, then remove the cowl plate (upper).
