WIPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008968800

Symbol Mark

am6zzb00000337

Removal Procedure

1.  Drill the 1 location indicated by (A) from the inside shown in the figure.

am6zzb00000338

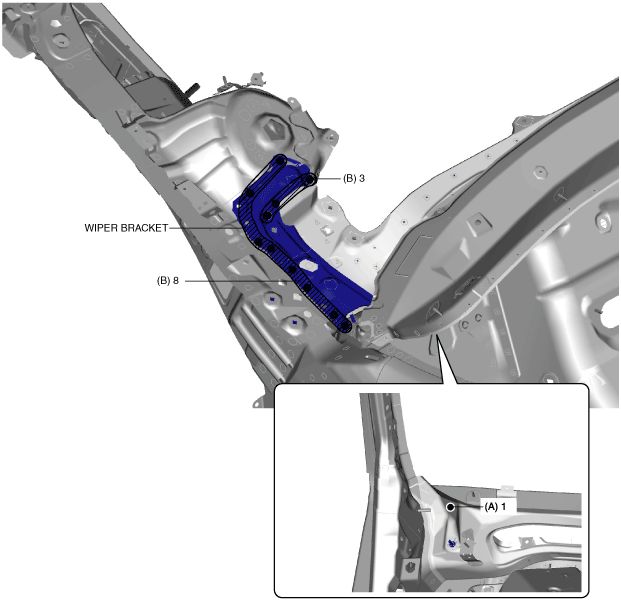

2.  Drill the 11 locations indicated by (B) shown in the figure, then remove the wiper bracket.
