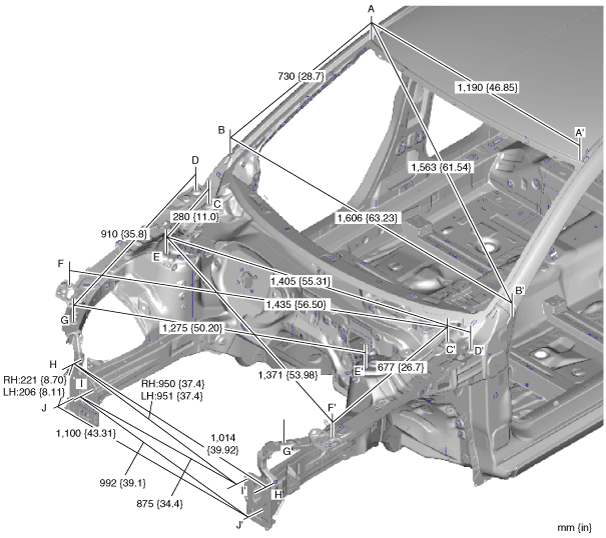

FRONT BODY DIMENSIONS (2) [DIMENSIONS]
id098010990200
am6zzb00000563
|
ac5wzb00000168
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Roof projection location
|
-
|
|
B
|
Cabin side outer frame (front pillar outer) projection location
|
-
|
|
C
|
Cowl panel installation nut
|
M8
|
|
D
|
Bonnet hinge installation nut
|
M8
|
|
E
|
Suspension housing (upper) datum hole
|
Φ10.2 {0.402}
|
|
F
|
Front fender panel installation nut
|
M6
|
|
G
|
Shroud upper member installation nut
|
M6
|
|
H
|
Shroud side stay datum hole
|
Φ10 {0.39}
|
|
I
|
Front bumper reinforcement installation nut
|
M10
|
|
J
|
Front bumper reinforcement installation nut
|
M10
|
