ROOM DIMENSIONS (2) [DIMENSIONS]
id098010990600
4SD
2WD

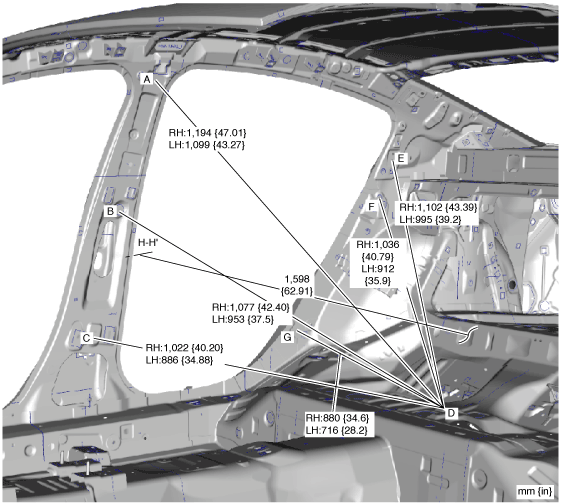

am6zzb00000516
|

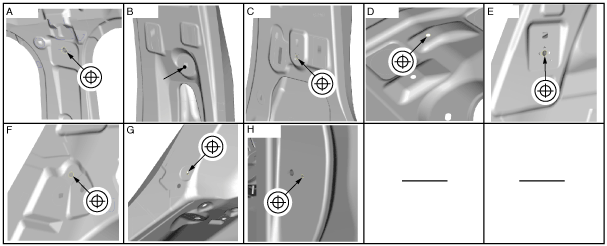

aatjjb00000302
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front seat belt upper anchor installation nut
|
M10
|
|
B
|
Center pillar (inner) datum square hole
|
7×7
{0.3 X 0.3}
|
|
C
|
Pre-tensioner seat belt installation nut
|
M6
|
|
D
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
E
|
RH: Keyless receiver installation nut
LH: Condenser installation nut
|
M6
|
|
F
|
Tire house trim installation hole
|
φ8.6 {0.34}
|
|
G
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
|
H
|
Rear door checker installation hole
|
φ4 {0.2}
|
4WD

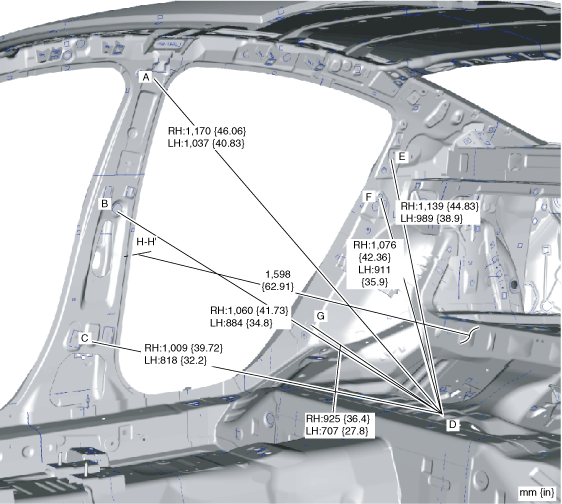

am6zzb00000606
|
aatjjb00000468
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front seat belt upper anchor installation nut
|
M10
|
|
B
|
Center pillar (inner) datum square hole
|
7×7
{0.3 X 0.3}
|
|
C
|
Pre-tensioner seat belt installation nut
|
M6
|
|
D
|
Center floor panel datum hole
|
φ7 {0.3}
|
|
E
|
RH: Keyless receiver installation nut
LH: Condenser installation nut
|
M6
|
|
F
|
Tire house trim installation hole
|
φ8.6 {0.34}
|
|
G
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
|
H
|
Rear door checker installation hole
|
φ4 {0.2}
|
WGN
2WD

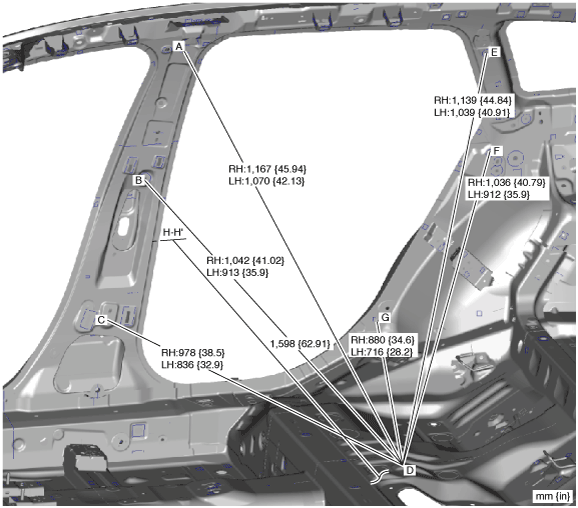

am6zzb00000509
|
aatjjb00000303
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front seat belt upper anchor installation nut
|
M10
|
|
B
|
Center pillar (inner) datum square hole
|
7×7
{0.3 X 0.3}
|
|
C
|
Pre-tensioner seat belt installation nut
|
M6
|
|
D
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
E
|
Wiring harness installation slot
|
7×12
{0.3 X 0.47}
|
|
F
|
Tire house trim installation hole
|
φ8.6 {0.34}
|
|
G
|
Tire house trim installation hole
|
φ8.6 {0.34}
|
|
H
|
Rear door checker installation hole
|
φ4 {0.2}
|
4WD
am6zzb00000607
|

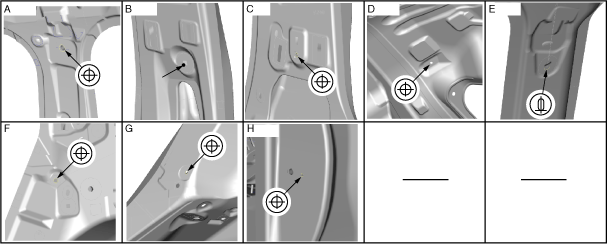

aatjjb00000473
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front seat belt upper anchor installation nut
|
M10
|
|
B
|
Center pillar (inner) datum square hole
|
7×7
{0.3 X 0.3}
|
|
C
|
Pre-tensioner seat belt installation nut
|
M6
|
|
D
|
Center floor panel datum hole
|
φ7 {0.3}
|
|
E
|
Wiring harness installation slot
|
7×12
{0.3 X 0.47}
|
|
F
|
Tire house trim installation hole
|
φ8.6 {0.34}
|
|
G
|
Tire house trim installation hole
|
φ8.6 {0.34}
|
|
H
|
Rear door checker installation hole
|
φ4 {0.2}
|
