DTC C1A67:4B [RADAR UNIT]
id1502a6017900
System malfunction location |
Radar unit is outside of operation range (ignition power supply, internal temperature) |
---|---|
Detection condition
|
• Radar unit power supply voltage is other than 9.5—15.5 V.
• Temperature in radar unit exceeds specification.
|
Fail-safe
|
• Inhibits the Mazda radar cruise control (MRCC) system control
• Inhibits the smart brake support (SBS) system control
• Inhibits the distance recognition support system (DRSS) control
|
Possible cause
|
• Generator system malfunction
• C/U IG1 15 A fuse malfunction
• Battery malfunction
• Open circuit or short to ground in wiring harness between battery positive terminal and radar unit
• Radar unit malfunction
|
![]() |
Diagnostic Procedure
Step |
Inspection |
Action |
|
---|---|---|---|
1
|
PERFORM DTC INSPECTION FOR PCM
• Perform the PCM DTC inspection using the M-MDS.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [SKYACTIV-D 2.2].)
Then go to Step 6.
|
No
|
Go to the next step.
|
||
2
|
INSPECT FUSE
• Switch the ignition off (LOCK).
• Disconnect the negative battery cable.
• Remove the C/U IG1 15 A fuse.
• Is the fuse normal?
|
Yes
|
Install the C/U IG1 15 A fuse, then go to the next step.
|
No
|
Replace the C/U IG1 15 A fuse, then go to Step 6.
|
||
3
|
INSPECT BATTERY
• Inspect the battery.
• Is the battery normal?
|
Yes
|
Go to the next step.
|
No
|
Replace/charge the battery, then go to Step 6.
|
||
4
|

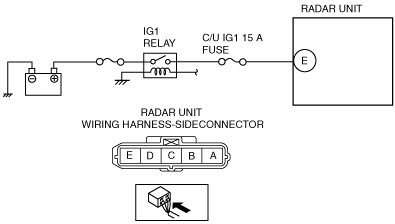

INSPECT WIRING HARNESS BETWEEN RADAR UNIT AND IG1 RELAY
• Remove the front bumper.
• Disconnect the radar unit connector.
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Measure the voltage of radar unit terminal E (wiring harness-side).
• Is the voltage between approx. 9.5—15.5 V?
|
Yes
|
Go to the next step.
|
No
|
If there is a common connector:If there is no common connector:
Refer to the wiring diagram and verify whether or not there is a common connector between radar unit terminal E and IG1 relay.
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit or short to ground.
• Repair or replace the malfunctioning part.
• Repair or replace the wiring harness which has an open circuit or short to ground.
Go to Step 6.
|
||
5
|
PERFORM DTC INSPECTION FOR RADAR UNIT
• Connect the radar unit connector.
• Connect the negative battery cable.
• Clear radar unit DTCs using the M-MDS.
(See CLEARING DTC [RADAR UNIT].)
• Switch the ignition ON (engine on).
• Perform the radar unit DTC inspection using the M-MDS.
(See DTC INSPECTION [RADAR UNIT].)
• Is the same DTC present?
|
Yes
|
Replace the radar unit, then go to the next step.
|
No
|
Go to the next step.
|
||
6
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Clear radar unit DTCs using the M-MDS.
(See CLEARING DTC [RADAR UNIT].)
• Switch the ignition ON (engine on).
• Perform the radar unit DTC inspection using the M-MDS.
(See DTC INSPECTION [RADAR UNIT].)
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction does not recur, go to the next step.
• If the malfunction recurs, replace the radar unit.
Go to the next step.
|
No
|
Go to the next step.
|
||
7
|
VERIFY THAT NO OTHER DTCs ARE PRESENT
• Verify other DTCs displayed.
• Are any other DTCs output?
|
Yes
|
Perform the corresponding DTC inspection.
|
No
|
DTC troubleshooting completed.
|
