CRUISE CONTROL SWITCH

id151200001000


Purpose

•  The cruise control switch can switch the MRCC system on/off and perform various settings.

Function

•  The cruise control switch sends electric signals for each switch operation to the start stop unit.

Construction

•  Installed to right-hand spoke of the steering wheel.

Function of Buttons

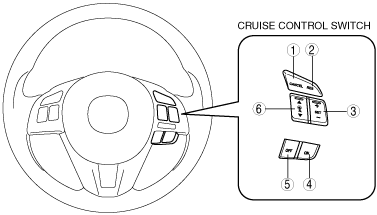

Without adjustable speed limiter

am6zzn00002771

No.

Name

Function
1
Cancel switch
Cancels the MRCC system
2
RESUME switch
Resets the recorded set vehicle speed and begins control.
3
Upper switch
•  Sets vehicle speed
•  Increases set vehicle speed
―  Increases speed in approx. 1 km/h {0.6 mph}increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 5 km/h {3 mph}increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
Lower switch
•  Sets vehicle speed
•  Decreases set vehicle speed
―  Decreases speed in approx. 1 km/h {0.6 mph}increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 5 km/h {3 mph}increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
4
MRCC ON switch
Turns on the MRCC system
5
MRCC OFF switch
Turns off the MRCC system
6
DISTANCE switch
Sets the distance between vehicles for the headway control (4 stages: Long, medium, short, extremely short)

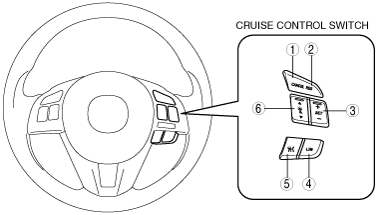

With adjustable speed limiter

am3zzn00004422

No.

Name

Function
1
Cancel switch
Cancels the MRCC system
2
RESUME switch
Resets the recorded set vehicle speed and begins control.
3
Upper switch
•  Sets vehicle speed
•  Increases set vehicle speed
―  Increases speed in approx. 1 km/h {0.6 mph}increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 5 km/h {3 mph}increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
Lower switch
•  Sets vehicle speed
•  Decreases set vehicle speed
―  Decreases speed in approx. 1 km/h {0.6 mph}increments each time switch is short pressed (European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 5 km/h {3 mph}increments each time switch is short pressed (Except European (L.H.D. U.K.) specs.)
―  Decreases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
4
SPEED LIMITER SWITCH
•  When the speed limiter switch is pressed, the adjustable speed limiter control condition goes on maximum vehicle speed setting standby.
•  The standby condition can be canceled by pressing the speed limiter switch while the adjustable speed limiter is on maximum vehicle speed setting standby.
5
MRCC ON/OFF switch
Turns on/off the MRCC system
6
DISTANCE switch
Sets the distance between vehicles for the headway control (4 stages: Long, medium, short, extremely short)


Fail-safe

•  Not applicable
