•  The Smart City Brake Support (SCBS) can be turned on or off optionally by the driver.

•  The switch operation signal is sent to the instrument cluster.

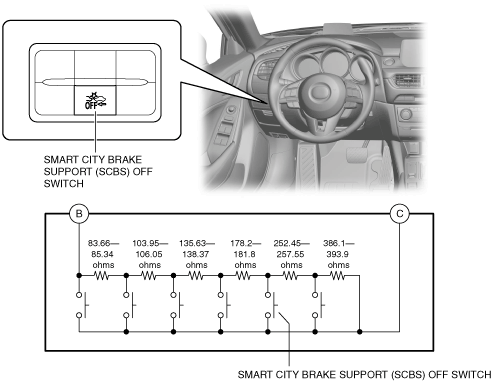

•  The Smart City Brake Support (SCBS) OFF switch is built into the cluster switch.

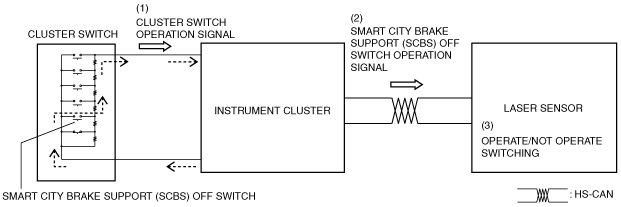

1.  When the Smart City Brake Support (SCBS) OFF switch is operated, a cluster switch operation signal is sent (1) to the instrument cluster.

2.  The instrument cluster sends (2) the Smart City Brake Support (SCBS) OFF switch operation signal to the laser sensor based on the switch operation signal (detected voltage).

3.  When the laser sensor receives the Smart City Brake Support (SCBS) OFF switch operation signal from the instrument cluster, it switches the Smart City Brake Support (SCBS) to operate/not operate (3).

am6zzn00003614

•  Not applicable
