BLIND SPOT MONITORING (BSM) SWITCH INSPECTION

id152000004000

Note

•  BSM switch is integrated with the cluster switch.

Switch inspection

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the BSM switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

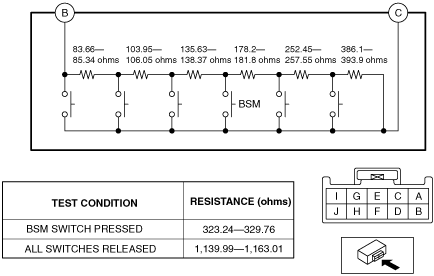

3.  Verify that the resistance between BSM switches B and C is as indicated in the table.

am6zzw00014063

•  If the resistance cannot be verified as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED illumination inspection

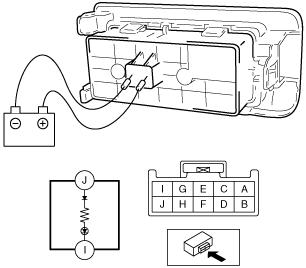

1.  Apply battery positive voltage to BSM switch terminal J, and connect terminal I to ground.

ac5jjw00000654

2.  Verify that the LED illuminates.

•  If there is any malfunction, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
