SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH INSPECTION

id152000015600

1.  Remove the Smart City Brake Support (SCBS) OFF switch. (See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH REMOVAL/INSTALLATION.)

2.  Verify that the resistance between the Smart City Brake Support (SCBS) OFF switch terminals B and C is as indicated in the table.

•  If not as indicated in the table, replace the Smart City Brake Support (SCBS) OFF switch.

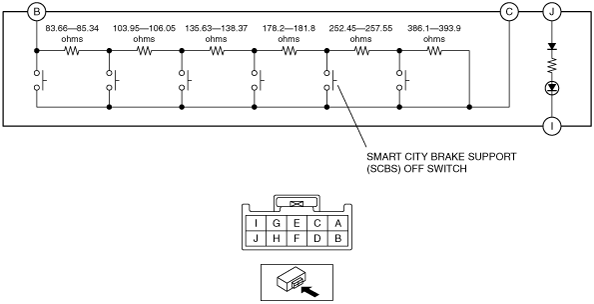

am6zzw00014210

Smart City Brake Support (SCBS) OFF switch specification

Terminal

Test condition

Resistance (ohms)
B—C
Switch pressed
501.44—511.56
Switch released
1139.99—1163.01

3.  Apply battery voltage to Smart City Brake Support (SCBS) OFF switch terminal J, and connect terminal I to ground.

4.  Verify that the LED illuminates.

•  If there is any malfunction, replace the Smart City Brake Support (SCBS) OFF switch.
