CYLINDER BLOCK DISASSEMBLY (II) [MZR-CD 2.2]
id0110f2500700

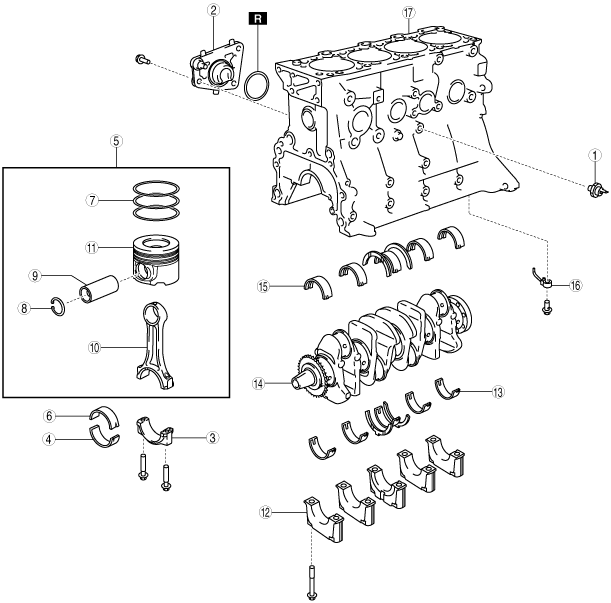

1. Disassemble in the order indicated in the table.
bem5ze00000114
|
|
1
|
Oil pressure switch
|
|
2
|
Cover
|
|
3
|
Connecting rod cap
|
|
4
|
Lower connecting rod bearing
|
|
5
|
Connecting rod, piston
|
|
6
|
Upper connecting rod bearing
|
|
7
|
Piston ring
|
|
8
|
Snap ring
|
|
9
|
Piston pin
|
|
10
|
Connecting rod
|
|
11
|
Piston
|
|
12
|
Main bearing cap
|
|
13
|
Lower main bearing, thrust bearing
|
|
14
|
Crankshaft
(See Crankshaft Removal Note.)
|
|
15
|
Upper main bearing, thrust bearing
|
|
16
|
Oil jet
|
|
17
|
Cylinder block
|
Connecting Rod Cap Removal Note
1. Before removing the connecting rod and piston, inspect the connecting rod side clearance.
(See CONNECTING ROD SIDE CLEARANCE INSPECTION [MZR-CD 2.2].)
Connecting Rod, Piston Removal Note
1. Before removing the connecting rod and piston, remove the carbon on the cylinder wall.
2. Before removing the connecting rod and piston, inspect the connecting rod oil clearance.
(See CONNECTING ROD OIL CLEARANCE INSPECTION/REPAIR [MZR-CD 2.2].)
Main Bearing Cap Removal Note
1. Before removing the main bearing cap, inspect the crankshaft end play.
(See CRANKSHAFT END PLAY INSPECTION/REPAIR [MZR-CD 2.2].)

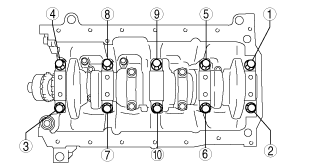

2. Loosen the main bearing cap bolts in two or three steps in the order shown in the figure.
bem5ze00000121
|
Crankshaft Removal Note
1. Before removing the crankshaft, inspect the crankshaft oil clearance.
(See CRANKSHAFT OIL CLEARANCE INSPECTION/REPAIR [MZR-CD 2.2].)
