JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS
id000000800500
Jacking Positions
Warning
• Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.
• Use safety stands to support the vehicle after it has been lifted.

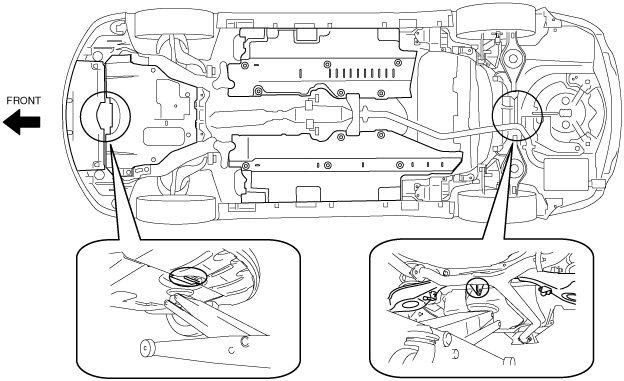

Front
Note
• To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.
• Near the center of the front crossmember.
Rear
• Near the center of the rear crossmember.
am6zzw00002850
Vehicle Lift Positions
Front and rear
Warning
• Lifting a vehicle that is not stabilized is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of the support at the end of the arm of the lift.
