ENGINE SPECIFICATIONS [MZR-CD (RF Turbo)]
id0100001003f1
Specification
|
Item |
Specifications |
||||
|---|---|---|---|---|---|
|
MZR-CD (RF Turbo) |
|||||
|
MECHANICAL
|
|||||
|
Type
|
Diesel, 4-cycle
|
||||
|
Cylinder arrangement and number
|
In-line, 4 cylinder
|
||||
|
Combustion chamber
|
Direct injection
|
||||
|
Valve system
|
SOHC, belt-driven, 16-valve
|
||||
|
Displacement
|
(ml {cc, cu in})
|
1,998 {1,998, 121.9}
|
|||
|
Bore x stroke
|
(mm {in})
|
86.0 x 86.0 {3.39 x 3.39}
|
|||
|
Compression ratio
|
16.7
|
||||
|
Compression pressure
|
(kPa {kgf/cm2, psi}[rpm])
|
2,900 {29.6, 420.6}[250]
|
|||
|
Valve timing
|
IN
|
Open
|
BTDC (°)
|
-6
|
|
|
Close
|
ABDC (°)
|
30
|
|||
|
EX
|
Open
|
BBDC (°)
|
41
|
||
|
Close
|
ATDC (°)
|
8
|
|||
|
Valve clearance
[engine cold]
|
IN
|
(mm {in})
|
0.09—0.21 {0.004—0.008}
|
||
|
EX
|
(mm {in})
|
0.29—0.41 {0.012—0.016}
|
|||
|
LUBRICATION SYSTEM
|
|||||
|
Type
|
Force-fed type
|
||||
|
Oil pressure (reference value)
[oil temperature: 100°C {212°F}]
|
(kPa {kgf/cm2, psi}[rpm])
|
147 {1.50, 21.3} min. [1,000]
343 {3.50, 49.7} min. [3,000]
|
|||
|
Oil pump
|
Type
|
Trochoid gear type
|
|||
|
Relief valve opening pressure
(reference value)
|
(kPa {kgf/cm2, psi}[rpm])
|
580—700 {5.92—7.13, 84.2—101.0}[3,000]
|
|||
|
Oil cooler
|
Type
|
Water-cooled
|
|||
|
Oil filter
|
Type
|
Full-flow, paper element
|
|||
|
Bypass pressure
|
(kPa {kgf/cm2, psi})
|
78—118 {0.80—1.20, 12.0—17.1}
|
|||
|
Oil capacity (approx. quantity)
|
Total (dry engine)
|
(L {US qt, lmp qt})
|
4.5 {4.8, 4.0}
|
||
|
Oil replacement
|
(L {US qt, lmp qt})
|
3.9 {4.1, 3.4}
|
|||
|
Oil and oil filter replacement
|
(L {US qt, lmp qt})
|
4.1 {4.3, 3.6}
|
|||
|
COOLING SYSTEM
|
|||||
|
Type
|
Water-cooled, Electromotive
|
||||
|
Coolant capacity (approx. quantity)
|
(L {US qt, lmp qt})
|
9.0 {9.5, 7.9}
|
|||
|
Water pump
|
Type
|
Centrifugal, Timing belt-driven
|
|||
|
Thermostat
|
Type
|
Wax, bottom-bypass
|
|||
|
Opening temperature
|
(°C {°F})
|
80—84 {176—183}
|
|||
|
Full-open temperature
|
(°C {°F})
|
95 {203}
|
|||
|
Full-open lift
|
(mm {in})
|
8.5 {0.33} or more
|
|||
|
Radiator
|
Type
|
Corrugated fin
|
|||
|
Cooling system cap
|
Cap valve opening pressure
|
(kPa {kgf/cm2, psi})
|
93.2—122.6 {0.951—1.250, 13.6—17.7}
|
||
|
Cooling fan
|
Type
|
Electric
|
|||
|
Number of blades
|
No.1: 7, No.2: 5
|
||||
|
Outer diameter
|
(mm {in})
|
320 {12.6}
|
|||
|
Fan motor output
|
(W)
|
No.1: 70, No.2: 90
|
|||
|
INTAKE-AIR SYSTEM
|
|||||
|
Turbocharger type
|
Variable geometry turbocharger
|
||||
|
Air cleaner element
|
Dry type
|
||||
|
Glow plug type
|
Ceramic type
|
||||
|
FUEL SYSTEM
|
|||||
|
Supply pump
|
Electronic control
|
||||
|
Fuel injector
|
Electromagnetic control
|
||||
|
Fuel tank capacity (reference)
|
(L {US gal, lmp gal})
|
64.0 {16.9, 14.1}
|
|||
|
EMISSION SYSTEM
|
|||||
|
EGR valve type
|
DC motor
|
||||
|
Intake shutter valve type
|
DC motor
|
||||
|
Catalytic converter type
|
Oxidation catalytic converter (monolithic catalyst)
|
||||
|
Diesel particulate filter system type
|
Catalyzed diesel particulate filter
|
||||
|
CHARGING SYSTEM
|
|||||
|
Battery
|
Voltage
|
(V)
|
12
|
||
|
Type and capacity
(5-hour rate)
|
(A·h)
|
95D31L (64), 115D31L (70)
|
|||
|
Generator
|
Output
|
(V-A)
|
12-100
|
||
|
Regulated voltage
|
Controlled by PCM
|
||||
|
Self diagnosis function
|
|||||
|
STARTING SYSTEM
|
|||||
|
Starter
|
Type
|
Coaxial reduction
|
|||
|
Output
|
(kW)
|
2.2
|
|||
|
CONTROL SYSTEM
|
|||||
|
IAT sensor (Inside MAF)
|
Thermistor
|
||||
|
MAF sensor
|
Hot-wire
|
||||
|
IAT sensor No.2
|
Thermistor
|
||||
|
Intake shutter valve position sensor
|
Hall element type
|
||||
|
Boost sensor
|
Piezoelectric element
|
||||
|
ECT sensor
|
Thermistor
|
||||
|
CMP sensor
|
Magneto resistance element
|
||||
|
CKP sensor
|
Magneto resistance element
|
||||
|
APP sensor
|
Hall element type
|
||||
|
EGR valve position sensor
|
Potentiometer
|
||||
|
Exhaust gas temperature sensor (Lower)
|
Thermistor
|
||||
|
Exhaust gas temperature sensor (Middle)
|
Thermistor
|
||||
|
Exhaust gas temperature sensor (Upper)
|
Thermistor
|
||||
|
Exhaust gas pressure sensor
|
Semiconductor type
|
||||
|
A/F sensor
|
Zirconia element
|
||||
|
BARO sensor (built into PCM)
|
Piezoelectric element
|
||||
|
Fuel temperature sensor
|
Thermistor
|
||||
|
Fuel pressure sensor
|
Piezoelectric element
|
||||
|
Exhaust gas pressure correction temperature sensor
|
Thermistor
|
||||
|
Neutral switch
|
ON/OFF
|
||||
|
Clutch switch
|
ON/OFF
|
||||
|
PSP switch
|
ON/OFF
|
||||
Recommended engine oil
|
Item |
Specifications |
|---|---|
|
Grade
|
ACEA C1 or JASO DL-1
|
|
Viscosity (SAE)
|
0W-30, 5W-30
|
|
Remarks
|
Mazda genuine Dexelia oil (DPF) e.g.
|

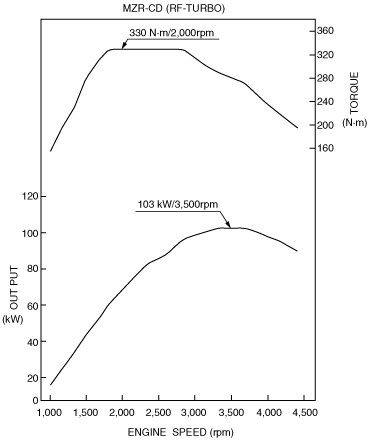

Engine Performance Curve
