ON-BOARD DIAGNOSTIC OUTLINE [L8, LF, L5]

id010242100100

Features

• The PCM performs self-diagnosis to check for malfunctions in the engine control system.

• If a malfunction occurs in the engine control system, the driver is notified.

• On-board diagnosis can be performed easily using an external tester.

To meet the EOBD regulations

•  Diagnostic test modes adopted

Improved serviceability

•  DTCs adopted

•  KOEO/KOER self-test function adopted

•  PID/DATA monitor function adopted

•  Active command modes function adopted

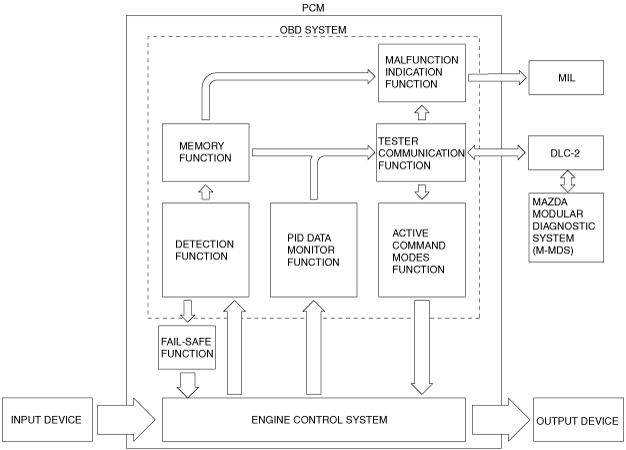

Block Diagram

am2zzn00000782

To meet the EOBD regulations	• Diagnostic test modes adopted
Improved serviceability	• DTCs adopted • KOEO/KOER self-test function adopted • PID/DATA monitor function adopted • Active command modes function adopted
