DTC P0072:00 [MZR-CD 2.2]

id0102f3145900

DTC P0072:00

Exhaust gas pressure correction temperature sensor circuit low input
DETECTION CONDITION
•  The PCM monitors the input signal from the exhaust gas pressure correction temperature sensor. If the voltage from the exhaust gas pressure correction temperature sensor is less than 0.09 V, the PCM determines that there is a malfunction in the exhaust gas pressure correction temperature sensor circuit.
Monitoring condition
•  Battery voltage: 8–20 V
Diagnostic support note
•  The MIL illuminates if the PCM detects the above malfunction condition in first drive cycle.
•  PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE

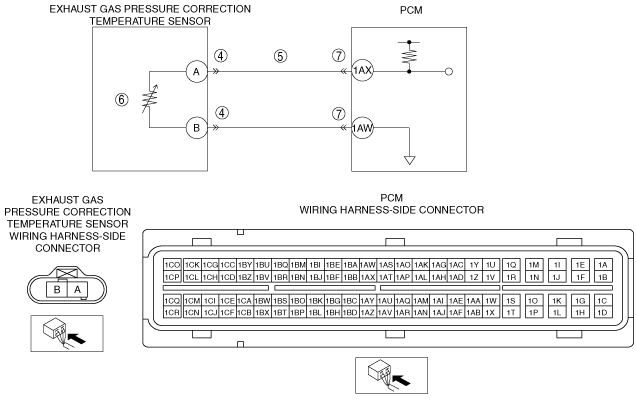

•  Exhaust gas pressure correction temperature sensor connector or terminal malfunction
•  Short to ground in wiring harness between exhaust gas pressure correction temperature sensor terminal A and PCM terminal 1AX
•  Exhaust gas pressure correction temperature sensor malfunction
•  PCM connector or terminal malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform the repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
•  Connect the M-MDS to the DLC-2.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the PENDING CODE for this DTC present?
Yes
Go to the next step.
No
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
(See INTERMITTENT CONCERN TROUBLESHOOTING [MZR-CD 2.2].)
4
INSPECT EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to off.
•  Disconnect the exhaust gas pressure correction temperature sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
5
INSPECT EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND
•  Switch the ignition to off.
•  Disconnect the exhaust gas pressure correction temperature sensor connector.
•  Inspect for continuity between exhaust gas pressure correction temperature sensor terminal A (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground.
If the short to ground circuit could not be detected in wiring harness, replace the PCM (PCM internal circuit short to ground).
Then go to Step 8.
No
Go to the next step.
6
INSPECT EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR
•  Inspect the exhaust gas pressure correction temperature sensor.
•  Is there any malfunction?
Yes
Replace the exhaust gas pressure correction temperature sensor, then go to Step 8.
(See EXHAUST GAS PRESSURE SENSOR/EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZR-CD 2.2].)
No
Go to the next step.
7
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to the next step.
No
Go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P0072:00 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [MZR-CD 2.2].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [MZR-CD 2.2].)
No
DTC troubleshooting completed.
