DTC P2101:00

Intake shutter valve control circuit range/performance malfunction
DETECTION CONDITION
•  The PCM monitors intake shutter valve control current when the ignition switch is ON position. If the intake shutter valve control current is above threshold, the PCM determines that the intake shutter valve control circuit has a malfunction.
Diagnostic support note
•  The MIL illuminates if the PCM detects the above malfunction condition in first drive cycle.
•  PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  Intake shutter valve connector or terminal malfunction
•  Short to ground between intake shutter valve terminal B and PCM terminal 2BB
•  Intake shutter valve malfunction
•  PCM connector or terminal malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record FREEZE FRAME DATA on repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to available Service Information.
•  If vehicle is not repaired, go to the next step.
No
Go to the next step.
3
IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA (MODE2)
•  Is DTC P2101:00 on FREEZE FRAME DATA (mode2)?
Yes
Go to the next step.
No
Go to troubleshooting procedures for DTC in FREEZE FRAME DATA (mode2).
(See DTC TABLE [MZR-CD 2.2].)
4
INSPECT INTAKE SHUTTER VALVE CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to off.
•  Disconnect the intake shutter valve connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
•  Is there any malfunction?
Yes
Repair or replace terminal, then go to Step 8.
No
Go to the next step.
5

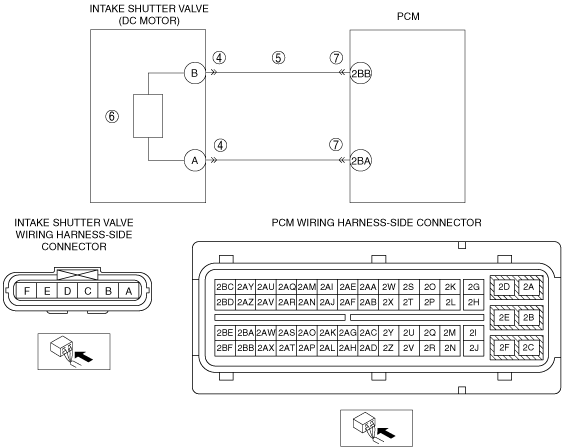

INSPECT INTAKE SHUTTER VALVE CONTROL CIRCUIT FOR SHORT TO GROUND
•  Disconnect intake shutter valve and PCM connectors.
•  Inspect for continuity between intake shutter valve terminal B (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Repair or replace short to ground, then go to Step 8.
No
Go to the next step.
6
INSPECT INTAKE SHUTTER VALVE
•  Inspect the intake shutter valve.
•  Is the intake shutter valve normal?
Yes
Go to the next step.
No
Replace the intake shutter valve, then go to Step 8.
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].)
7
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
•  Is there any malfunction?
Yes
Repair or replace terminal, then go to the next step.
No
Go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P2101:00 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Switch the ignition to ON (engine off).
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [MZR-CD 2.2].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Is any DTC present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [MZR-CD 2.2].)
No
Troubleshooting completed.
