FOREWORD [MZR-CD 2.2]


id0102f3800300

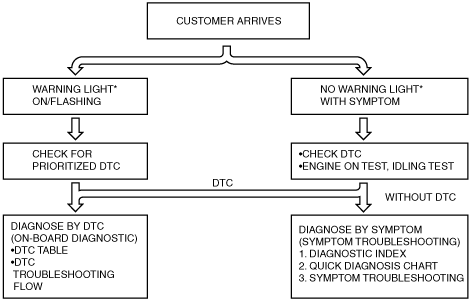

•  When the customer reports a vehicle malfunction, check the malfunction indicator light (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.
―  If the DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [MZR-CD 2.2].)
―  If the DTC does not exist and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting.
am3zzw00004230
*: Malfunction Indicator Light (MIL), Generator Warning Light, Security Light, Diesel Particulate Filter Indicator Light
