MELTING OF MAIN OR OTHER FUSES
[TROUBLESHOOTING HINTS]

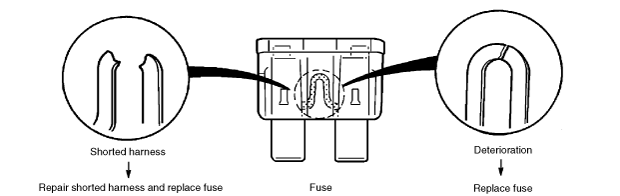

Inspect condition of fuse.
Damaged fuse
Related wiring harness
MAIN
MAIN fuse
• BTN fuse
-
― ROOM fuse
• IG KEY2 fuse
• FAN fuse
• AD FAN fuse
• Generator
BTN
BTN fuse
• ROOM fuse
ROOM
ROOM fuse
• DLC-2
IG KEY2
IG KEY2 fuse
• Starter relay
FAN
FAN fuse
• Cooling fan relay No.1
• Cooling fan relay No.4 (with four cooling fan relays)
AD FAN
AD FAN fuse
• Cooling fan relay No.2 (with two cooling fan relays)
• Cooling fan relay No.3 (with four cooling fan relays)
ENGINE IG
ENGINE IG fuse
• Cooling fan relay No.1
• Cooling fan relay No.2
• Cooling fan relay No.3 (with four cooling fan relays)
• PCM
F.WARMER
F.WARMER fuse
• Fuel warmer
GLOW
GLOW fuse
• GLOW SIG fuse
• Glow plug
GLOW SIG
GLOW SIG fuse
• PCM
ENGINE +B
ENGINE +B fuse
• PCM
EGI
EGI fuse
• Main relay
• Keyless control module (with Advanced keyless entry system and push button start system)
FUEL PCM
FUEL PCM fuse
• PCM
INJ
INJ fuse
• MAF/IAT sensor
• Variable boost control solenoid valve
• EGR bypass valve
• A/F sensor
