ENGINE MOUNT OUTLINE [L8, LF, L5]


id0110a6101400

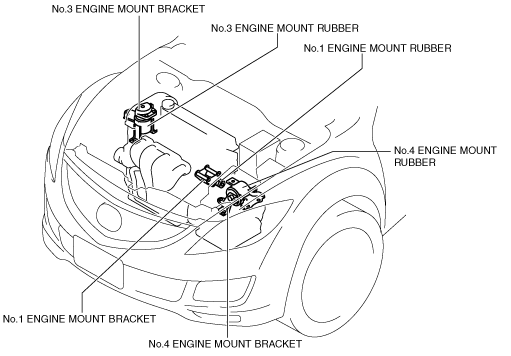

•  The layout of the engine mounting is a pendulum type, which reduces the noise in the cabin.
•  The engine is supported at three points, and simplification of the engine mount composition parts is attained.
•  The No.3 engine mount rubber, which is an oil-filled type, has been adopted to reduce the noise and vibration in the cabin.
am6zzn00000468
