CONNECTING ROD, CONNECTING ROD BEARING CONSTRUCTION [MZR-CD (RF Turbo)]
id0110f1100700

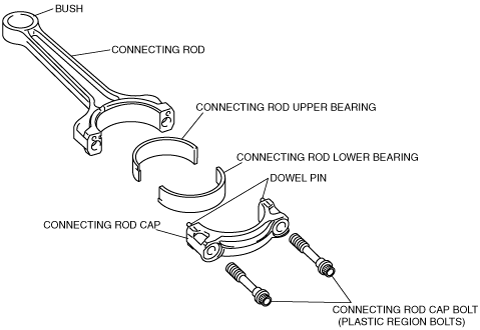

Structure
• Connecting rods are made of carbon steel.
• Dowel pins are used to position the rod cap to the connecting rod.
• Connecting rod caps are secured with plastic region bolts.
